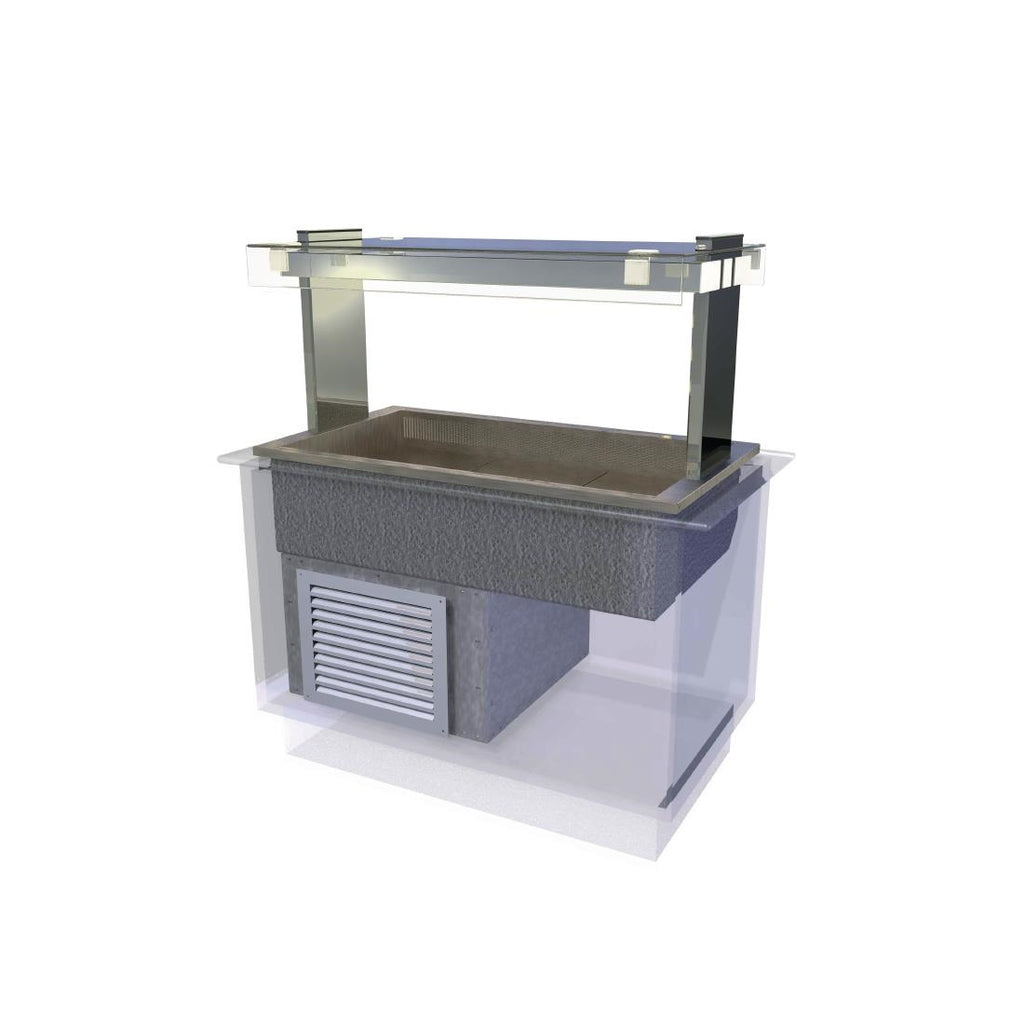

Kubus KCIW4HT Drop-In Cold Island Well Self-Service 1525mm

The Kubus KCIW4HT is a drop-in refrigerated cold island well designed for self-service countertop applications in commercial catering environments. It sits flush into a prepared counter surface and provides chilled, illuminated display for refrigerated food and drink, with customer access from both sides of the unit. The underslung condensing unit is ventilated through air grilles supplied with the unit, keeping the installation profile clean and unobtrusive.

In operation, the unit holds food core temperatures between -1°C and 5°C and is rated for 24-hour continuous use, making it a practical choice for sites where the display needs to remain active through extended service periods or overnight. The R290 hydrocarbon refrigerant system offers a lower global warming potential than older refrigerants and tends to run at lower energy consumption, which is worth considering across the full operating year. The diffused overhead lighting in the gantry presents product clearly without harsh spotlighting, and the eye-level digital temperature display gives staff a quick read on performance without opening the unit.

From a day-to-day operational perspective, several practical details stand out:

• Modular removable deck plates simplify cleaning at end of service
• Integrated condensate evaporator removes the need for a site drainage connection
• Toughened glass sneeze screens on both sides protect product while maintaining open access
• Temperature-lockable control panel prevents accidental or unauthorised adjustments
• Diffused gantry lighting keeps the display well-lit without uneven hot spots

Installation requires a suitably prepared countertop opening to accept the drop-in well. The unit ships with air inlet grilles, a lifting kit, and a 2-metre lead and plug top for a standard connection. At 136kg, adequate handling resource at delivery and installation is important to plan for. GN containers are not included and will need to be sourced separately. The underslung condensing unit will need clear airflow beneath the counter — confirm your counter void dimensions against the unit before ordering.

This unit is well suited to café and restaurant self-service counters, hotel buffet setups, staff canteens, and food-to-go operations where customers serve themselves directly. The 1525mm width accommodates four full GN positions, which suits a moderate range of chilled lines at service. Operators running higher-volume buffet operations or needing a longer display run should consider whether a larger-capacity configuration would be more appropriate for their throughput requirements.

If you're planning a counter build-out or refurbishment and want to talk through how this unit would work within your layout, our team is happy to work through the details with you before you commit to an order.
