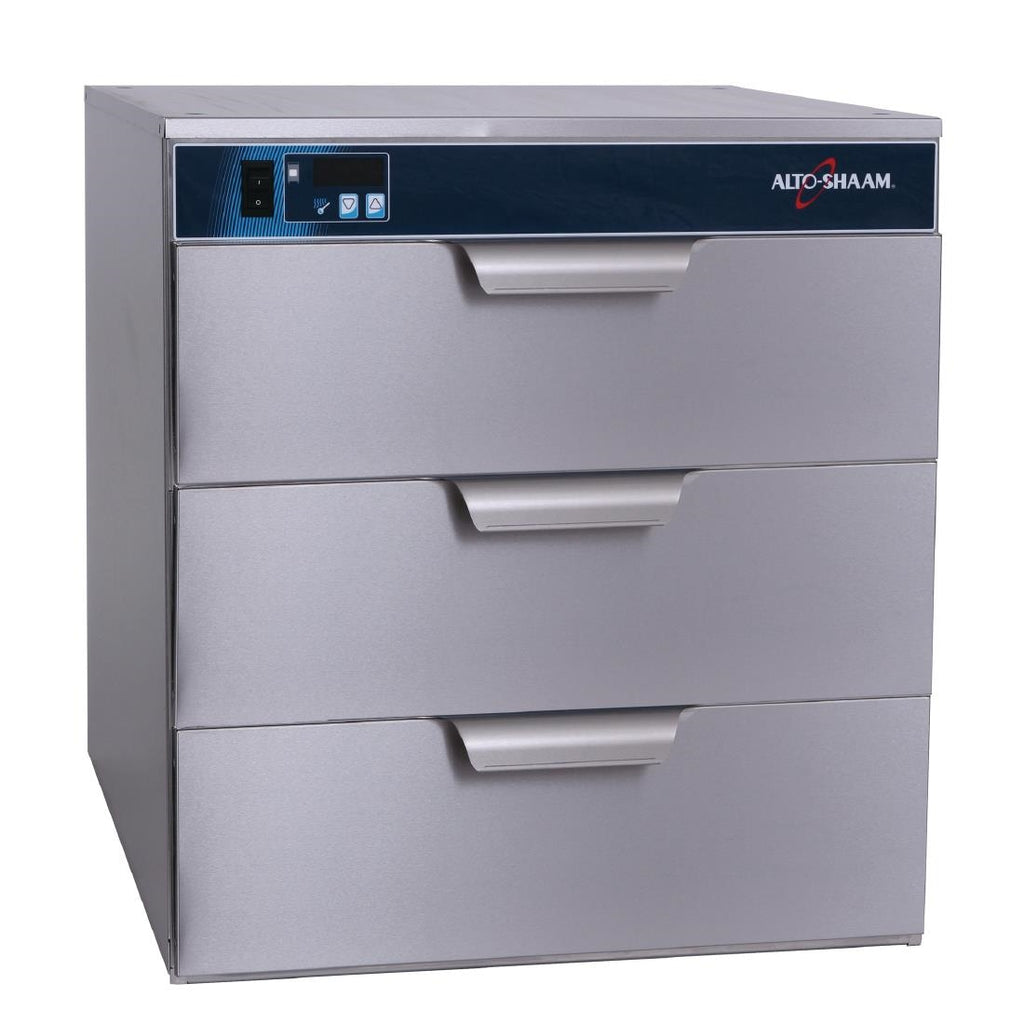

Alto-Shaam 500-3D Halo Heat 3-Drawer Warmer
Product Description
The Alto-Shaam 500-3D is a three-drawer holding unit built around Alto-Shaam's Halo Heat system — a low-wattage, radiant heat cable that wraps the entire cavity rather than relying on a...
Specifications
- Colour
- Silver
- Dimensions
- 663(H) x 618(W) x 625(D)mm
- Gn size
- 1/1 GN full
- Power
- 1kW, 2.6A
Downloads
Product Description
The Alto-Shaam 500-3D is a three-drawer holding unit built around Alto-Shaam's Halo Heat system — a low-wattage, radiant heat cable that wraps the entire cavity rather than relying on a fan or element to force hot air around the food. The result is a stable, even heat environment that holds food at serving temperature without continuing to cook it or draw out moisture.
In practice, this makes a noticeable difference during service. Proteins stay juicier for longer, portion-ready items maintain their texture, and operators have a wider holding window before quality starts to decline. For kitchens running multiple covers or dealing with uneven service flow, that margin is genuinely useful. Each drawer operates independently, which means you can hold different items at different temperatures simultaneously — a practical advantage in kitchens preparing varied menus.
Key operational characteristics include:
- Independent drawer control for multi-temperature holding across three zones
- Radiant Halo Heat system minimises moisture loss during extended holding
- Wide temperature range supporting everything from delicate pastry to hot roasted meats
- Self-contained unit with no external water connection required
- Straightforward drawer mechanism with accessible interior for cleaning
The unit is a freestanding or countertop installation — it does not require a water supply or extract ventilation, which simplifies placement considerably. At 68kg it is weighty enough that positioning should be planned in advance, particularly if it is going onto a shelf or counter with a load rating to consider. Electrical connection should be confirmed with a qualified installer before fitting.
The 500-3D suits operations where consistent hold quality matters as much as throughput — gastro pubs, hotel kitchens, restaurant pass areas, and catering operations where food is prepared in batches ahead of service. For higher-volume operations requiring more drawer capacity, larger configurations within the Alto-Shaam range are worth considering.
If you are unsure whether this model fits your service volumes or pass layout, our team is happy to work through the specifics with you before you commit.
Key Features
- Three independently controlled GN 1/1 drawers for flexible holding
- Halo Heat radiant cable system surrounds cavity for even temperature distribution
- Wide temperature range from 16°C to 93°C suits varied menu items
- Self-contained unit requiring no water supply or ventilation extract
- Robust construction rated for continuous commercial kitchen use
Operational Benefits
- Holds food at consistent serving temperature throughout unpredictable service periods
- Reduces moisture loss so food quality is maintained over longer holding windows
- Independent drawer zones let you hold multiple menu items simultaneously
- No ventilation or plumbing requirement simplifies placement in the kitchen
- Reliable radiant heat reduces risk of hot spots drying out plated portions
Specifications
- Colour
- Silver
- Dimensions
- 663(H) x 618(W) x 625(D)mm
- Gn size
- 1/1 GN full
- Power
- 1kW, 2.6A
- Temperature range
- 16°C to 93°C
- Warranty
- 1 Year Parts & Labour
- Weight
- 68kg
Downloads
Frequently Asked Questions
- Holding time depends on the food type and the temperature setting, but the Halo Heat system is specifically designed to extend the usable holding window compared to conventional forced-air warmers. Operators commonly use it to hold proteins, sides, and prepared portions for extended periods without significant moisture loss, though the practical limit will vary with your menu and portion size.
- The unit requires an electrical connection, and we recommend confirming the supply requirements with a qualified electrician before installation — particularly if it is being added to an existing pass or counter setup. Unlike some holding equipment, it does not require a water supply or extract ventilation, which typically makes installation more straightforward.
- The 500-3D with three GN 1/1 drawers suits medium-volume operations well — restaurant kitchens, hotel pass areas, and catering setups where batch holding is part of the workflow. If you are running a high-volume operation with a continuous need to hold large quantities across multiple categories, it is worth discussing whether a higher-capacity configuration would serve you better.
