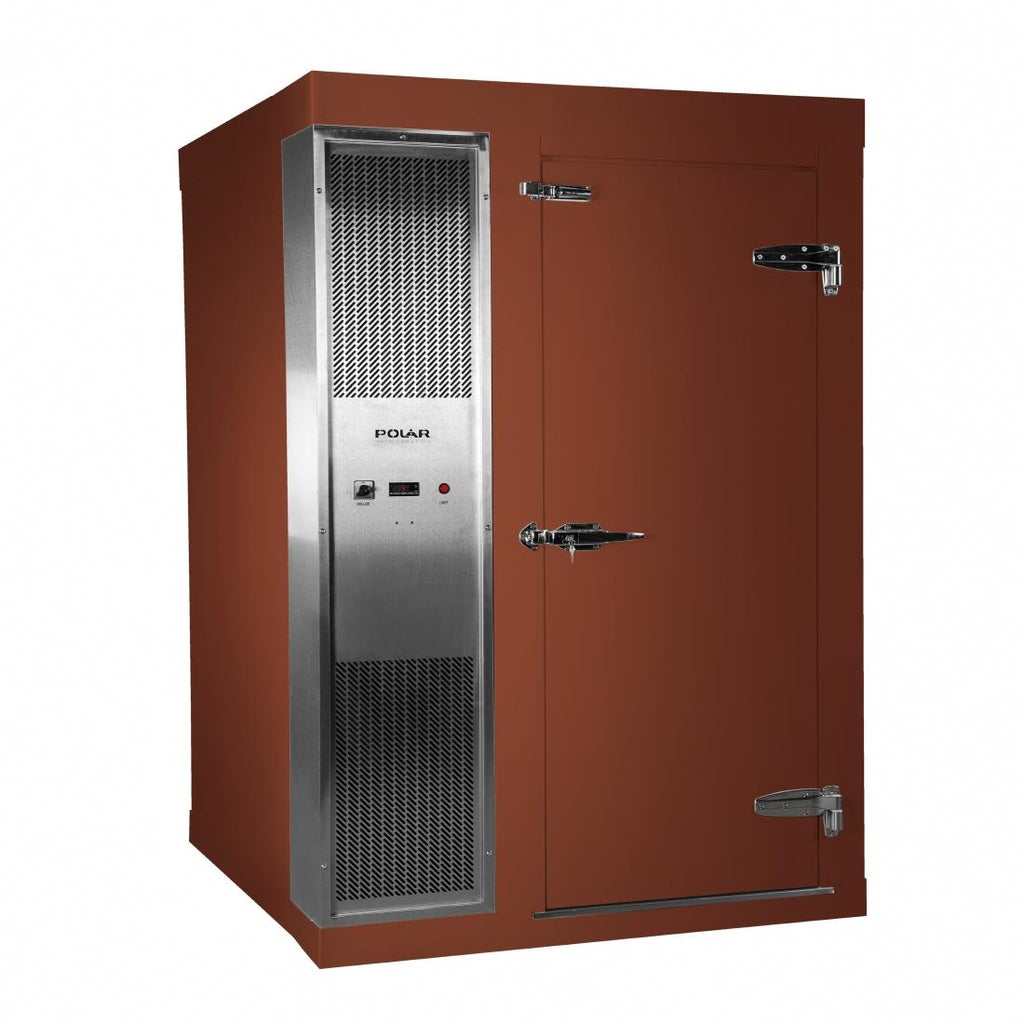

Polar U-Series 1.8 x 2.1m Integral Walk-In Freezer Room Brown

Product No: DS486-FBN

Product Description

The Polar U-Series walk-in freezer room is a fully integral, self-contained cold store designed for commercial sites that require serious bulk freezer storage. Integral construction means the refrigeration unit is built into the room itself — there is no separate remote condenser to plan for or commission, which simplifies both the installation process and ongoing maintenance. This particular configuration measures 1.8 metres wide by 2.1 metres deep and delivers a gross capacity of 6,490 litres, making it one of the larger standard footprint options in the Polar range.

In a busy kitchen or food production environment, the unit holds a steady working temperature even when ambient conditions are demanding. The refrigeration system is rated to operate reliably in ambient temperatures up to 43°C, which is worth noting for sites in poorly ventilated plant rooms or external installations during summer months. Forced air cooling circulates temperature consistently throughout the chamber, which is important where product is stored at varying heights or density — it reduces warm spots and helps protect the quality and shelf life of frozen stock during high-access periods such as prep shifts.

From an operational standpoint, the key practical advantages are:

  • Front-mounted digital control panel for straightforward temperature monitoring without entering the room
  • Lockable, self-closing door with a fully rebated fit flush to the 80mm insulated wall panels — good for security and cold retention
  • Van Dyke Brown exterior finish suitable for both indoor and outdoor placement
  • R449A refrigerant with a lower global warming potential than older alternatives
  • Two-year on-site parts and labour warranty, limiting exposure to repair costs in the early operational period

Installation is included in the price and covers site survey, delivery, professional fit-out and commissioning — available to mainland UK locations. Because this is a special-to-order product, it cannot be returned once ordered, so it is important to confirm the specification before proceeding. The unit weighs 435kg when empty, so floor loading, access routes, and handling equipment should be checked ahead of delivery. If the room is to be sited outdoors, a weather-resistant roof section is available separately and should be considered. Internal racking and shelving are not included and need to be ordered separately to make the space operational from day one.

This configuration is well suited to hotel kitchens, central production units, butchers, fishmongers, catering companies, and any operation that holds significant frozen stock and needs reliable, secure access throughout the working day. It represents a mid-to-large footprint within the standard Polar walk-in range — smaller configurations are available for sites with tighter floor space, and larger or higher-specification rooms can be discussed for higher-volume operations.

Given the bespoke nature of this product and the installation requirements involved, it is worth speaking with us before placing an order — particularly if you have questions around floor loading, external siting, or how this footprint fits your workflow.

Key Features

  • Fully integral refrigeration unit requires no remote condenser installation
  • Operates reliably in ambient temperatures up to 43°C
  • 80mm insulated wall panels with rebated self-closing lockable door
  • Front-mounted digital control panel for accurate temperature regulation
  • R449A refrigerant with reduced global warming potential versus older gases

Operational Benefits

  • Consistent frozen storage protects stock quality during high-access service periods
  • Integral build simplifies commissioning and reduces long-term maintenance complexity
  • Rebated door and lockable handle improve cold retention and stock security
  • Ambient temperature tolerance suits poorly ventilated or outdoor plant room sites
  • Included installation and survey reduces project management burden on operators

Specifications

Capacity
6490Ltr
Colour
Brown
Dimensions
2200(H) x 1800(W) x 2100(D)mm
Dimensions internal
2037(H) x 1580(W) x 1880(D)mm
Door type
Hinged
Fridge capacity
6490
Insulation
80mm
Material
Galvanised Steel/ Aluminium & Plastic
Refrigerant
R449A / 1500g
Temperature range
'-15°C to -18°C
Warranty
2 Years On-Site Parts & Labour
Weight
435kg

Downloads

Frequently Asked Questions

Regular price £7,092.00 exc. VAT £8,510.40 inc. VAT
Stock due by (approx)
  • Equipment may be supplied with a moulded plug but may be more suitably connected to a fused spur
  • In the event of equipment failure an engineer will be sent for an onsite repair
  • In the event of equipment failure any parts needed will be provided
  • Item weighs over 100kg and will need care and planning to get into position
