San Jamar C3400EF Multi-Angle Foam Cup Dispenser 12-24oz 70-98mm

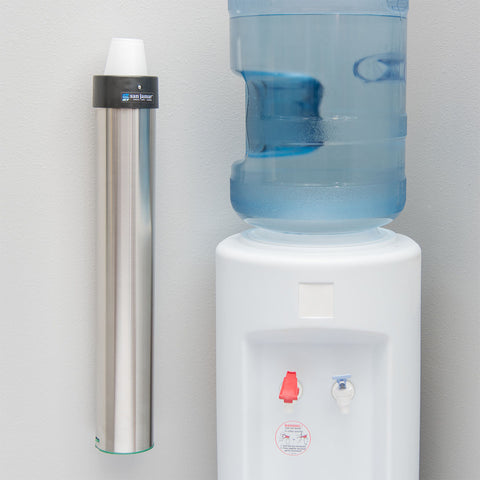

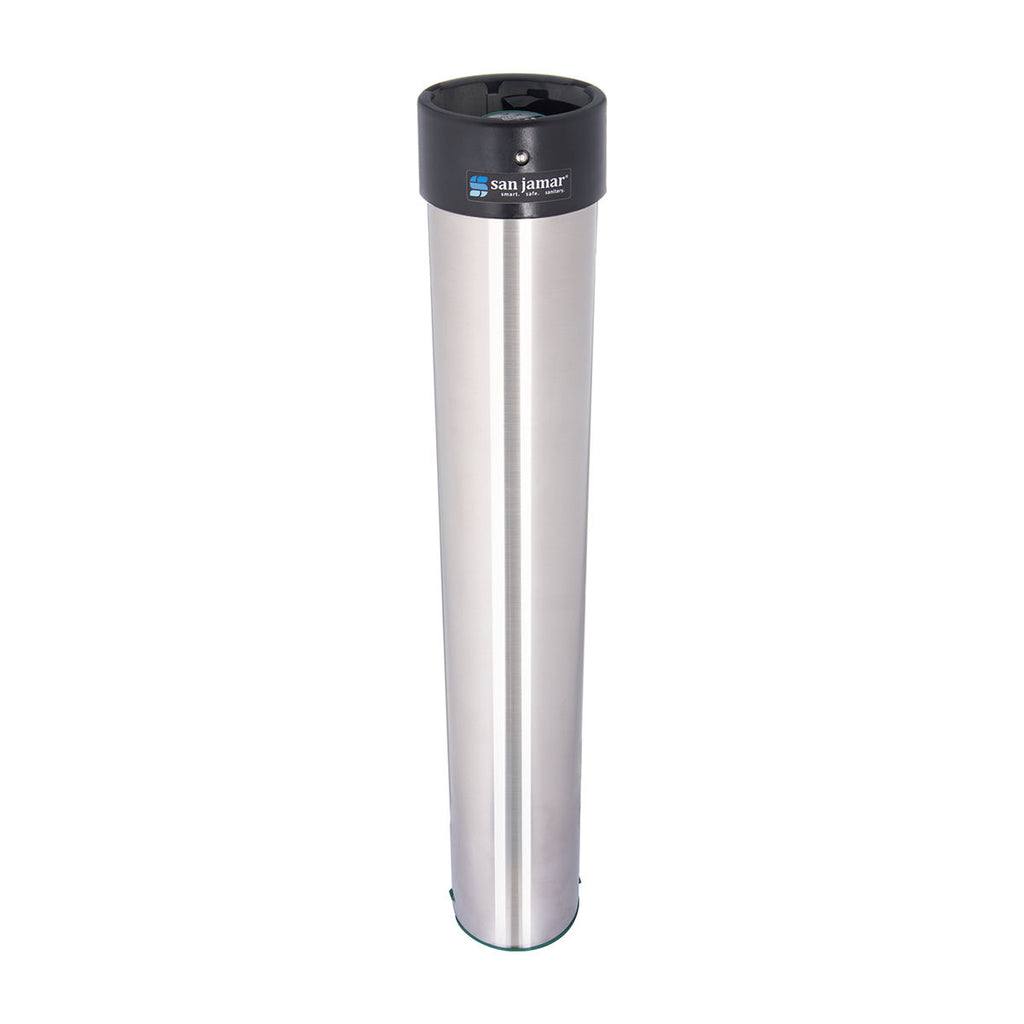

The San Jamar C3400EF is a surface-mount foam cup dispenser designed to hold and dispense 12 to 24oz foam cups in a controlled, hygienic single-cup presentation. It is built from 26-gauge 304 stainless steel and intended for fixed installation in beverage service areas, whether that is a self-service station, a staffed counter, or an end-cap position.

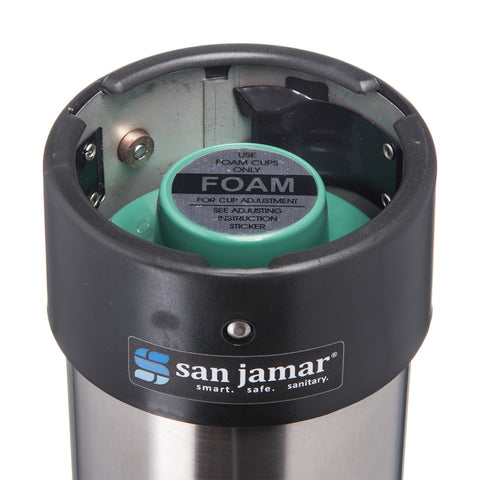

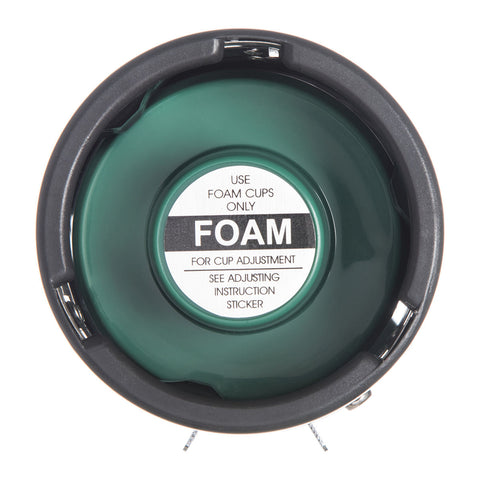

In busy service environments, consistent cup dispensing matters more than it might seem. A poorly positioned or poorly sized dispenser leads to cups being grabbed in handfuls, contamination of the rim area, or cups jamming mid-service. The C3400EF addresses this with an adjustable collar that conforms to different cup diameters within the supported range, allowing the dispenser to be set correctly for the specific cup stock in use rather than relying on a one-size-fits-all fit.

The practical advantages of this unit include:

• Mounts horizontally, vertically or at a 45-degree angle to suit counter layout and access requirements
• Adjustable collar accommodates foam cup rim diameters across the 70-98mm range
• Stainless steel construction supports regular cleaning and resists corrosion in damp service areas
• Single-cup elevator dispensing reduces rim contamination and cup waste
• Suitable for under-counter, wall-mount or end-cap positions

Installation is straightforward, though it is worth noting that different spring sets are required depending on the mounting orientation chosen — horizontal, vertical and angled positions each use a different spring. This should be confirmed at the point of ordering if your installation position is already fixed. The unit is surface-mounted, so no internal cabinetry is needed, but the mounting surface must be stable enough to support the unit and a full column of cups without flex.

This dispenser is well suited to cafes, staff canteens, vending areas, hospitality back-bars and any site using foam cups in the 12-24oz range as their standard format. It is a single-sleeve unit, so sites with very high throughput or multiple cup sizes in simultaneous use may find a multi-sleeve or higher-capacity dispensing system more practical.

If you are unsure whether this unit suits your counter layout or cup specification, the team is happy to help you confirm the right fit before you order.
