Kubus Drop-In Multideck Refrigerated Self-Service Display 1175mm

SKU: CW644

£6,639.00(£7,966.80 inc VAT)
Get a quote

Request a callback

Leave your details and we will call you back about Kubus Drop-In Multideck Refrigerated Self-Service Display 1175mm.

Delivery Information

Price Match

  • In the event of equipment failure any parts needed will be provided 1
  • In the event of equipment failure an engineer will be sent for an onsite repair 1

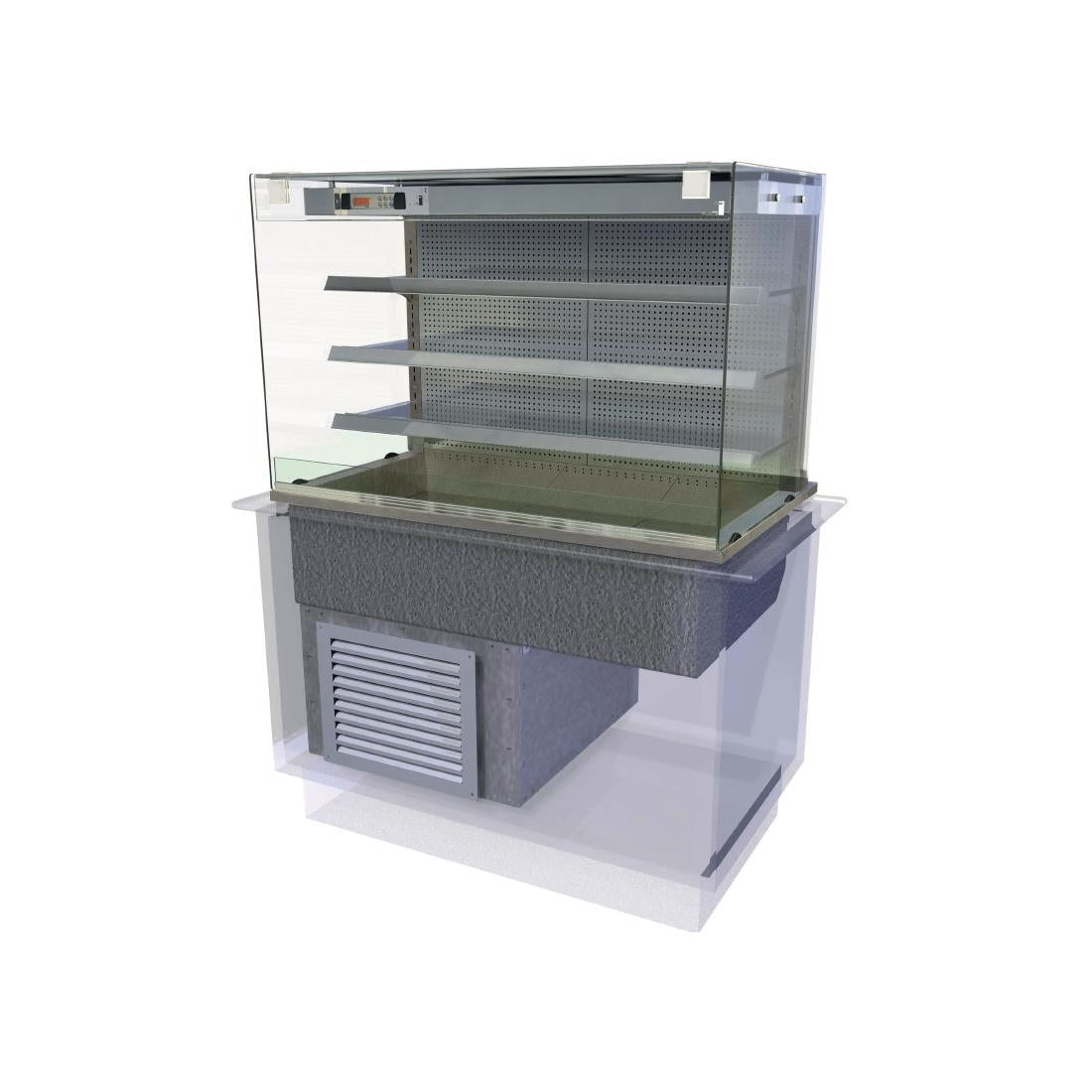

The Kubus 1175mm drop-in multideck is a refrigerated self-service display unit designed to be set into a countertop build. It provides a chilled open-front display for pre-packaged food and drink, with customers serving themselves directly. Three adjustable toughened glass shelves sit above a chilled counter-level well, enclosed by a flat toughened glass sneeze screen and side glass panels. A gantry above the unit carries diffused shelf lighting and a digital temperature display, and the control panel locks to prevent tampering in customer-accessible settings.

The unit is built around an underslung condensing unit ventilated through air inlet grilles and a rear vent supplied with the unit. This means the refrigeration system manages its own thermal load independently, without relying on ambient room airflow. R290 hydrocarbon refrigerant supports efficient thermal performance across sustained all-day operation, and the unit holds a food-safe temperature range consistently — well suited to sites trading long hours. An integral condensate evaporator removes the need for a site drain connection, which simplifies the countertop installation considerably.

From an operational standpoint, several design details make a practical difference in day-to-day service:

  • Shelf height and angle are both adjustable to suit varying product formats
  • Ticket strips on each shelf edge allow straightforward pricing or promotional labelling
  • Removable deck plates make routine cleaning more accessible during quiet periods
  • Lockable controls help maintain consistent temperature settings in public-facing locations
  • 24-hour operation capability supports sites with extended trading or overnight holding requirements

Installation requires a countertop opening sized to the drop-in frame, with the ventilation grilles and rear vent correctly positioned. At 158kg the unit is substantial, so the supporting countertop structure needs to be specified accordingly. Connection is via a standard 2m lead and plug, removing the need for hardwired electrical installation, though the countertop build and ventilation arrangement should be planned before the unit arrives. This is not a freestanding unit and is not suitable for open floor placement.

The 1175mm width and three-shelf configuration suit delis, cafés, farm shops, workplace canteens, and food retail environments where customer self-service of chilled products is a core part of the offer. It is well matched to moderate throughput sites. For higher-volume or larger countertop installations, a wider or greater-capacity model may be worth considering alongside this one.

If you are planning a countertop build around this unit or have questions about the ventilation arrangement and whether it suits your site, we are happy to work through the details with you before you place an order.

Frequently asked questions

Does this unit need a dedicated drainage connection on site?

No — the integral condensate evaporator handles condensate internally, so no site drain connection is required. This is a practical advantage when the unit is being built into a countertop where running drainage would be difficult or costly.

What ventilation provision is needed for the countertop installation?

The underslung condensing unit is ventilated via air inlet grilles and a rear vent that is supplied with the unit. These need to be correctly positioned within the countertop build to maintain adequate airflow — if the ventilation arrangement is restricted, refrigeration performance will be affected. We would recommend confirming your countertop design before committing to installation.

Is this display well suited to a deli or farm shop environment?

Yes, it is commonly used in exactly those settings — delis, cafés, farm shops, and food retail counters where customers select chilled pre-packaged products themselves. The three-shelf configuration and 1175mm width work well for moderate throughput sites; if you are expecting a very high volume of customer traffic or have a longer counter run to fill, it is worth speaking to us about whether a higher-capacity model would be a better match.
