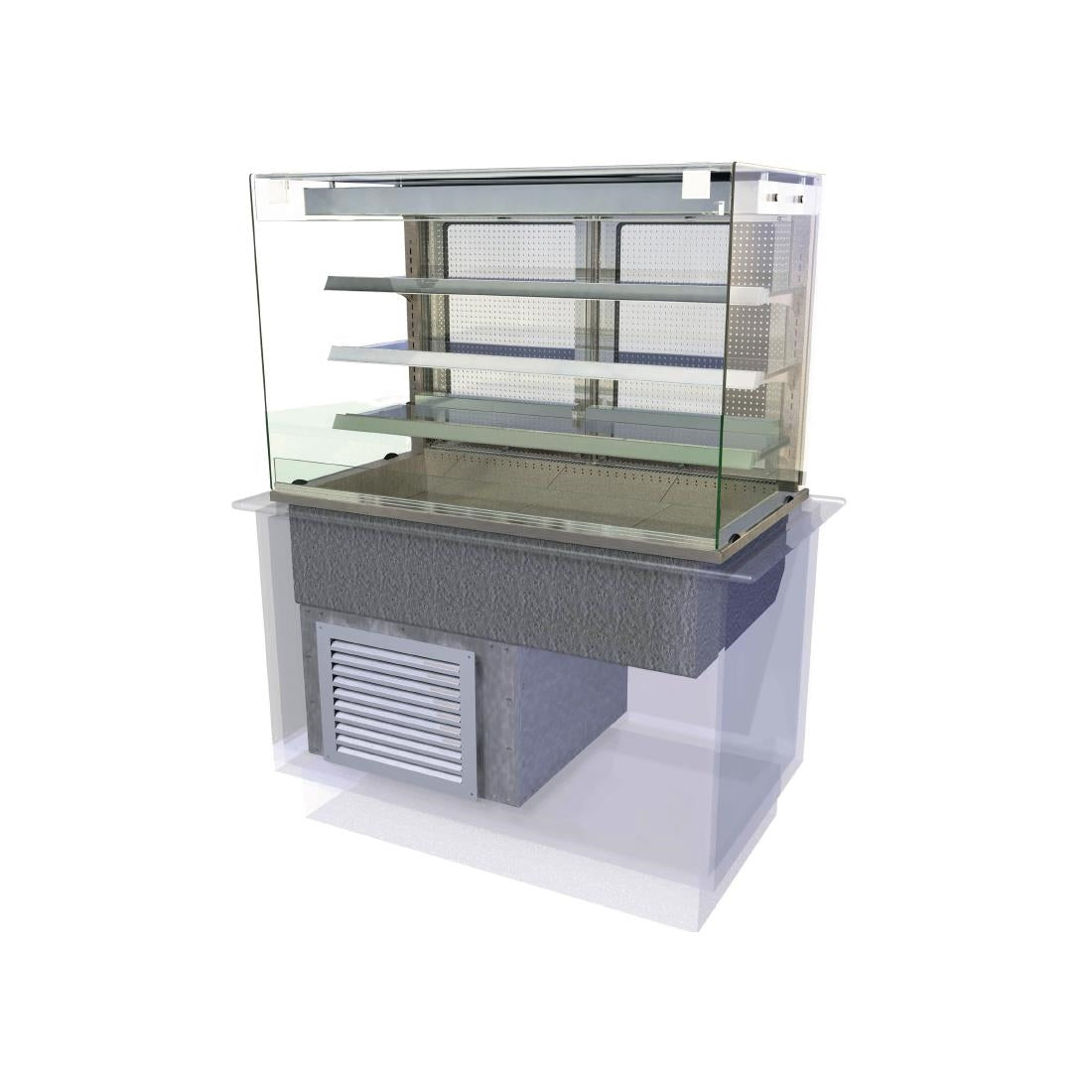

Kubus Drop In Multideck Self Service 1175mm product image

Kubus

Kubus 1175mm Drop-In Multideck Self-Service Chilled Display

SKU: CW646

£5,384.00(£6,460.80 inc VAT)
Get a quote

Request a callback

Leave your details and we will call you back about Kubus 1175mm Drop-In Multideck Self-Service Chilled Display.

Delivery Information

Price Match

  • In the event of equipment failure any parts needed will be provided 1
  • In the event of equipment failure an engineer will be sent for an onsite repair 1

The Kubus 1175mm drop-in multideck is a refrigerated self-service display unit designed to be built into a service counter or countertop installation. It holds chilled food and drink at a consistent temperature within the safe food service range, with three toughened glass shelves and a chilled well accessible from the customer side. Double-glazed hinged rear doors allow staff to restock without disrupting service, while a flat toughened glass sneeze screen to the front and glazed side panels keep the display hygienic and visible from multiple angles.

In practice, this type of unit is commonly found at deli counters, food-to-go operations, staff restaurants, and cafés where customers self-select chilled products. The shelves are adjustable in height and angle, which gives operators flexibility to adapt the layout to different product formats as the range or season changes. Each shelf includes a product stop and a ticket strip along the front edge — straightforward for labelling and pricing without interfering with the product display. A digital temperature readout is positioned at gantry level, and the control panel is lockable on the operator side to prevent accidental adjustment during service.

From a day-to-day operational standpoint, several design choices reduce the burden on kitchen and front-of-house teams:

  • Modular removable deck plates simplify end-of-day cleaning and breakdown
  • An integral condensate evaporator removes the need for a site drain connection
  • R290 hydrocarbon refrigerant offers a lower environmental impact and reduced running costs over time
  • The underslung condensing unit keeps the counter profile clean and the footprint compact
  • Diffused shelf and gantry lighting presents chilled product clearly without harsh hotspots

Installation requires careful planning before the counter is built. The unit is designed exclusively for drop-in countertop fitting, and correct positioning of the supplied air inlet grilles along with adequate rear ventilation is essential — the underslung condensing unit depends on sufficient airflow to operate reliably. The unit is supplied with a two-metre lead and plug top, which removes the need for a dedicated electrical circuit in most installations, though the counter structure must be built to accommodate the unit's footprint and, at 170kg, appropriate handling equipment will be needed on installation day. No site drainage connection is required thanks to the integral condensate evaporator.

This unit is well suited to cafés, food-to-go counters, staff restaurants, delis, and similar settings operating at a steady chilled throughput. It is best suited to moderate-volume sites — for higher-volume or larger-format operations, a wider or multi-section configuration is worth considering. Where counter space is more limited, a narrower unit from the same range may be the more practical choice.

If you are planning a counter build-out or want to confirm this unit is the right fit for your service model and countertop specification, the team is happy to talk it through before you go ahead.

Frequently asked questions

Is this unit suitable for a high-volume food-to-go counter with frequent restocking?

The Kubus 1175mm multideck is well suited to moderate-volume self-service operations where chilled throughput is steady. For sites with very high footfall or exceptionally rapid product turnover, a wider or multi-section configuration is likely to serve you better — it is worth discussing your expected throughput with the team before committing.

What does the installation involve, and can it be fitted into an existing counter?

The unit is designed for drop-in installation into a purpose-built or suitably adapted service counter. The counter must be constructed to accommodate the unit's footprint and support its weight of 170kg, and the air inlet grilles and rear ventilation must be correctly positioned to ensure adequate airflow to the underslung condensing unit. The unit is supplied with a two-metre lead and plug top, so no dedicated electrical circuit is typically required, and no site drainage connection is needed thanks to the integral condensate evaporator.

Does the R290 refrigerant affect servicing or ongoing maintenance requirements?

R290 is a hydrocarbon refrigerant that offers a lower global warming potential than many synthetic alternatives and can contribute to reduced running costs over the unit's life. Servicing must be carried out by a technician qualified to work with flammable refrigerants, which is standard practice for R290 equipment — most commercial refrigeration engineers hold the relevant certification, but it is worth confirming with your service provider before installation.
