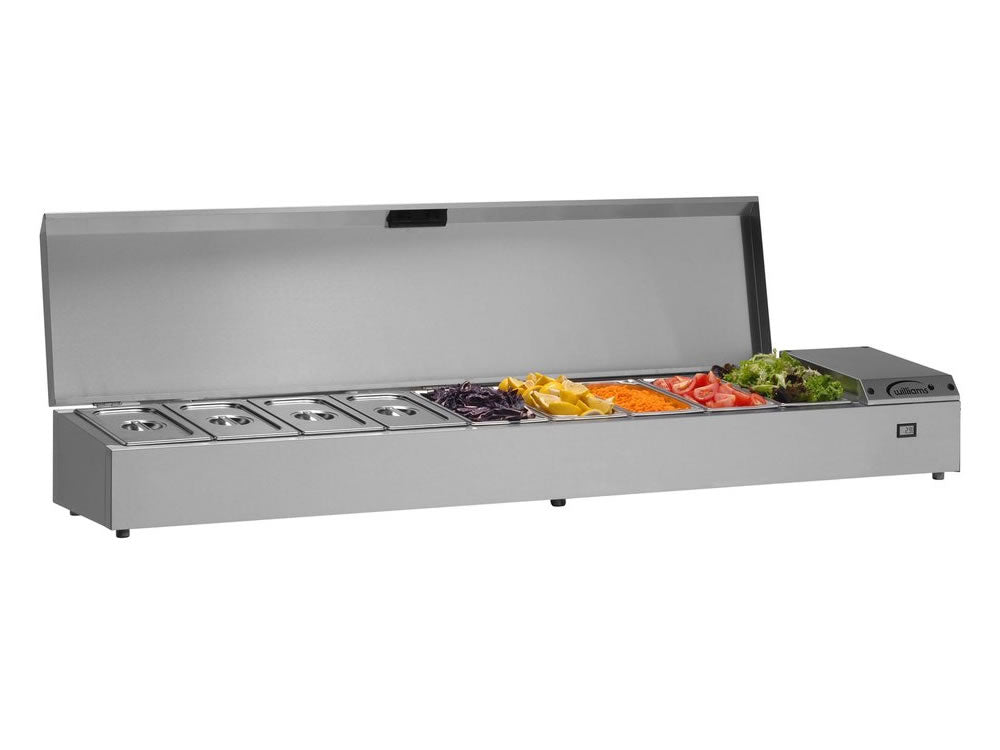

Williams TW18-SS 9 x 1/3 GN Refrigerated Thermowell
Product Description
The Williams TW18-SS is a refrigerated thermowell designed to hold nine 1/3 GN pans simultaneously, keeping prepped ingredients chilled and immediately accessible at the point of preparation or service. It...
Specifications
- External depth (mm)
- 385
- External height (mm)
- 241
- External width (mm)
- 1862
- Internal depth (mm)
- 305
Downloads
Spec Sheet Thermowell RangeProduct Description
The Williams TW18-SS is a refrigerated thermowell designed to hold nine 1/3 GN pans simultaneously, keeping prepped ingredients chilled and immediately accessible at the point of preparation or service. It sits between a cold bain-marie and a full refrigerated prep counter in terms of format — a compact, self-contained unit that maintains safe holding temperatures without relying on ice or regular manual replenishment during service.
In a working kitchen, this type of unit is most commonly found on saladette lines, pizza prep stations, and garnish runs where a manageable number of ingredients need to stay cool and within easy reach throughout service. The open thermowell format means chefs can access what they need without opening a cabinet door, which helps maintain throughput during busy periods. Recovery after repeated access is generally reliable, provided the unit is positioned with adequate airflow around the condenser.
Practical advantages for kitchen operators include:
- Chilled ingredient holding without ice or manual topping up during service
- Nine 1/3 GN pan layout suits a broad range of prep and service configurations
- Compact footprint works in tighter prep areas where a full counter would be impractical
- Keeps frequently used ingredients immediately to hand, supporting faster plating
- Flexible positioning — counter placement, wall mounting, or use with legs
The unit requires access to a standard electrical supply. Adequate ventilation around the condenser is important for consistent performance, so placement in a confined recess or tight against a wall should be assessed before installation. Ambient kitchen temperature is also worth considering — in particularly hot kitchen environments, holding performance can be affected, and this is a practical factor to weigh up during planning.
This thermowell is well suited to small and medium operations — cafés, small restaurants, and food-to-go kitchens where a full refrigerated prep counter would be oversized for the volume of ingredients being held. For sites running extended prep stations or higher-volume services, a larger-capacity refrigerated counter is likely to be a better fit.
If you are weighing up whether a thermowell format suits your particular service setup, we are happy to talk through the options before you commit.
Key Features
- Holds nine 1/3 GN pans in a single refrigerated thermowell unit
- Self-contained refrigeration requires no ice or manual replenishment
- Open-top pan access without doors for uninterrupted service flow
- Suitable for counter mounting, wall fixing, or use with legs
- Stainless steel construction designed for commercial kitchen environments
Operational Benefits
- Keeps prepped ingredients at safe chill temperatures throughout service
- Reduces time lost to restocking ice or refrigerated storage mid-service
- Supports faster plating by keeping garnishes and toppings immediately accessible
- Compact format fits prep areas where a full counter is impractical
- Reliable temperature recovery after repeated access during busy service periods
Specifications
- External depth (mm)
- 385
- External height (mm)
- 241
- External width (mm)
- 1862
- Internal depth (mm)
- 305
- Internal finish
- Stainless Steel
- Internal height (mm)
- 105
- Internal width (mm)
- 1569
- Material
- Stainless Steel
- Max ambient temp deg c
- 32
- Noise level
- 42 dB(A)
- Power rating (kw)
- 0.53
- Power type
- 13amp Plug
- Refrigerant
- R600a
- Temperature range (deg c)
- +4 to +8
Downloads
Spec Sheet Thermowell RangeFrequently Asked Questions
- The TW18-SS is well suited to small and medium operations with a moderate number of ingredients to hold chilled. For kitchens running extended prep stations, larger ingredient ranges, or longer unbroken service periods, a full refrigerated prep counter with greater pan capacity is likely to be a more practical fit.
- The unit requires a standard electrical supply and relies on adequate airflow around the condenser for consistent performance. Avoid positioning it in a tightly enclosed recess or flush against a rear wall without clearance. Ambient kitchen temperature is also worth factoring in — particularly hot kitchen environments can affect holding performance over extended service periods.
- Yes — the thermowell format is commonly used on pizza prep stations, saladette lines, and garnish runs where a set range of ingredients needs to stay chilled and accessible throughout service. The nine 1/3 GN configuration gives reasonable flexibility for most standard prep layouts.
