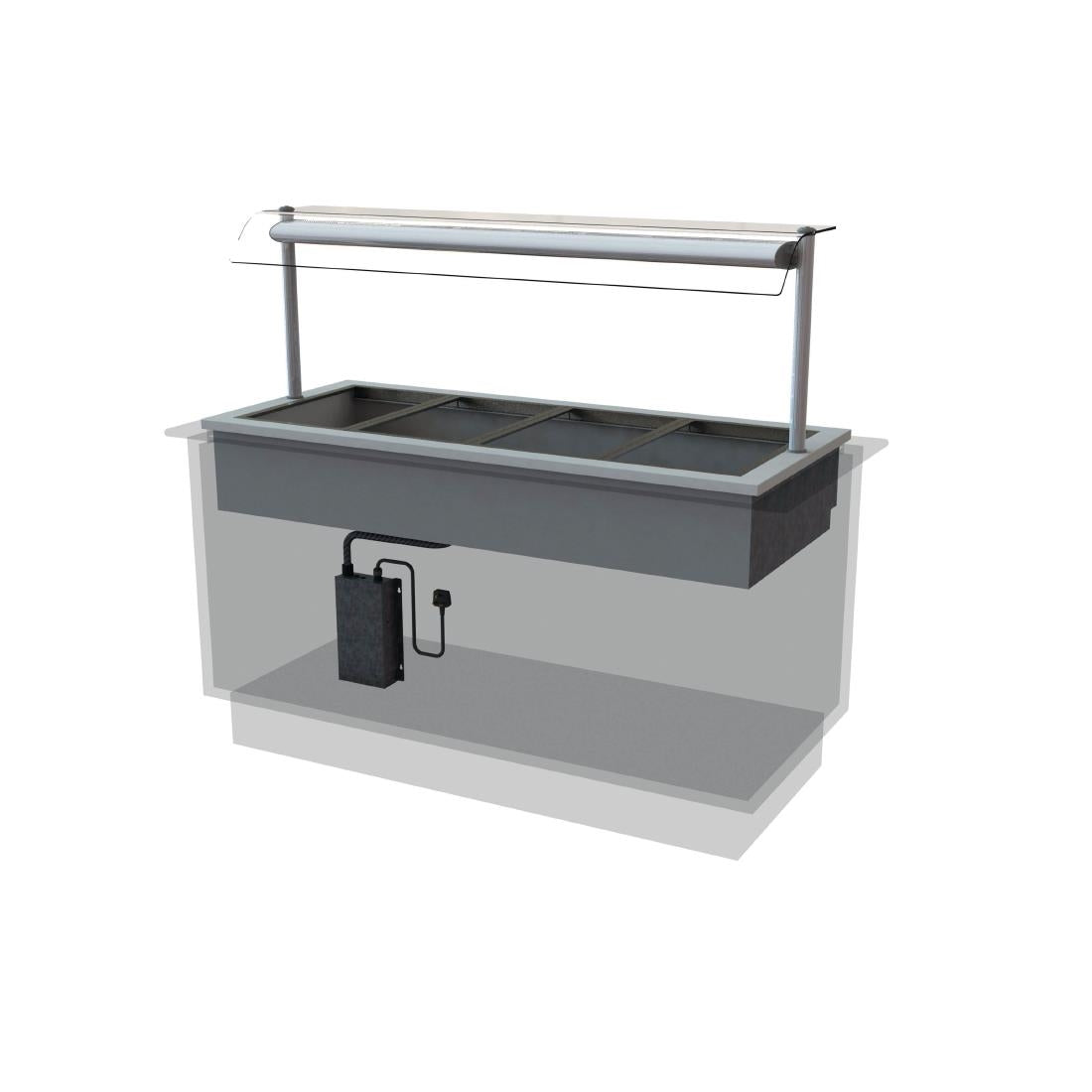

Designline HBM4 Drop-In Dry Heat Bain Marie 4x1/1 GN

The Designline HBM4 is a drop-in dry heat bain marie designed for self-service counter installations. It sits flush into a pre-cut countertop opening and holds four full 1/1 GN containers, keeping pre-cooked food at the correct service temperature throughout the trading period. Unlike a wet bain marie, it requires no water connection — heat is delivered through the base well and supplemented by an overhead quartz lamp gantry that provides both radiant surface heat and illumination simultaneously.

In service, the HBM4 performs reliably across long trading windows. Factory set to hold food core temperature at 85°C with a range extending to 110°C, it gives operators flexibility for different menu items without manual intervention mid-service. The quartz lamps help retain food quality and surface presentation during extended display periods — particularly useful in carvery or buffet environments where food may sit on counter for several hours. Independent controls for base heat and lamp output are positioned at operator eye level, with a digital temperature display and dimmer switch, so adjustments can be made without disrupting the service flow. Lockable digital controls reduce the risk of accidental changes from the customer side.

From a practical standpoint, the key operational advantages include:

• Individual GN collar supports that accommodate containers up to 150mm deep, including fractional GN sizes
• Removable heater element covers in the well for even heat distribution and straightforward daily cleaning
• Curved toughened glass sneeze screen on the customer side, meeting food safety requirements without obstructing visibility
• Concealed control box and 2-metre plug-top lead, reducing installation complexity
• Lifting kit included, given the 55kg unit weight

Installation requires a pre-formed countertop cut-out sized to the unit's footprint. At 1525mm wide, this is a substantial counter opening, so early coordination with your joinery or counter fabricator is important — retrofitting an existing counter that was not built to accommodate this width is not straightforward. Power is supplied via a standard plug top, which simplifies the electrical connection, though the counter circuit should be appropriately rated before installation. No water supply or drainage is required.

The HBM4 is well suited to carvery counters, hotel buffet operations, staff restaurants, and self-service environments where a wide, illuminated hot food display is needed across extended service periods. The four-GN configuration suits medium to high-volume covers comfortably. For smaller counters or tighter cut-out constraints, a narrower two- or three-GN variant may be more appropriate. For very high-volume sites running continuous back-to-back service, it is worth discussing whether a higher-capacity unit would better meet the throughput demand.

If you have questions about how this unit fits your counter design or want to talk through cut-out requirements and power ratings before committing, our team is glad to help.
