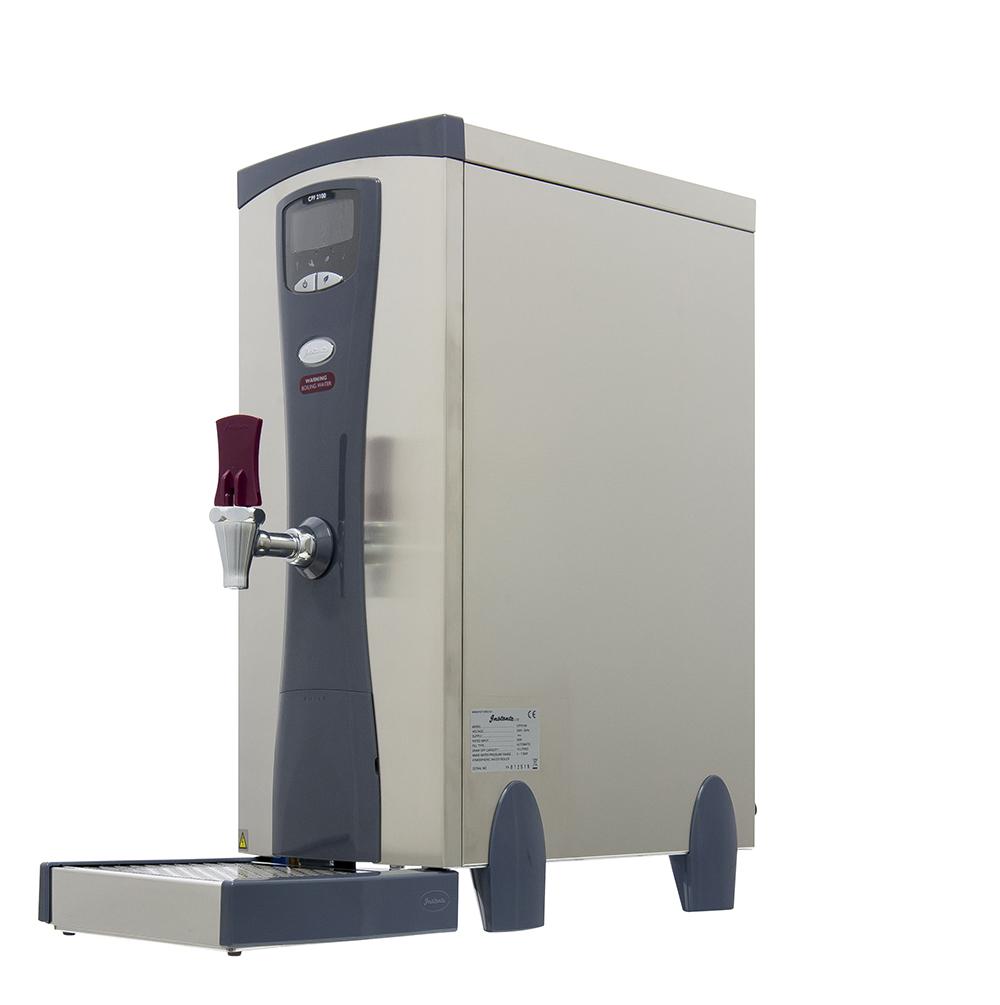

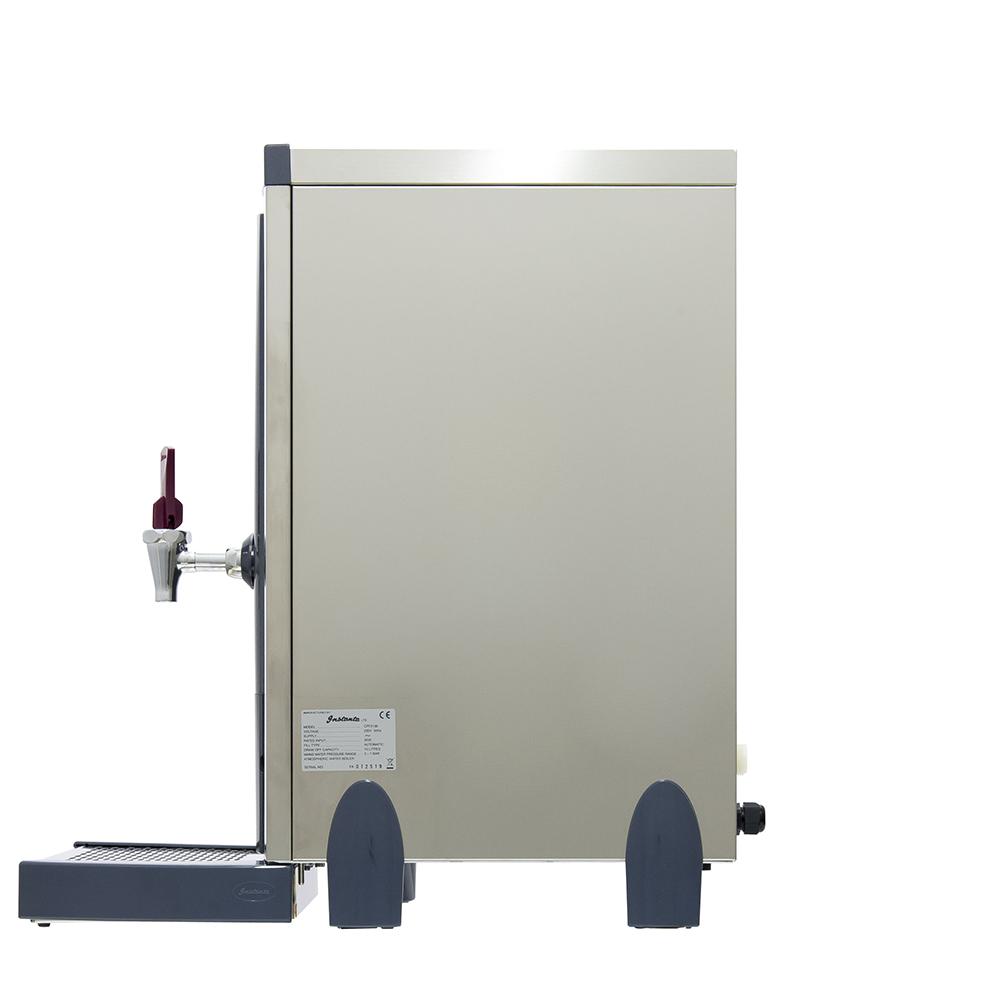

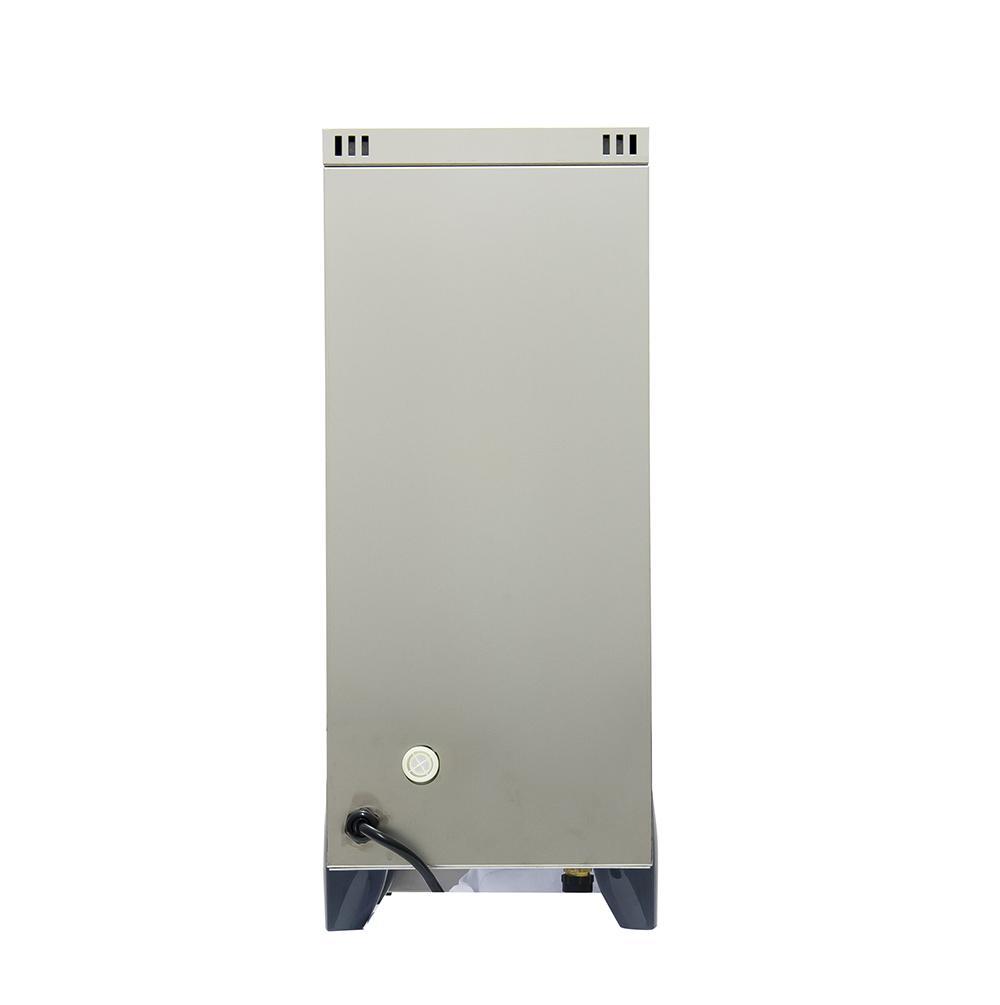

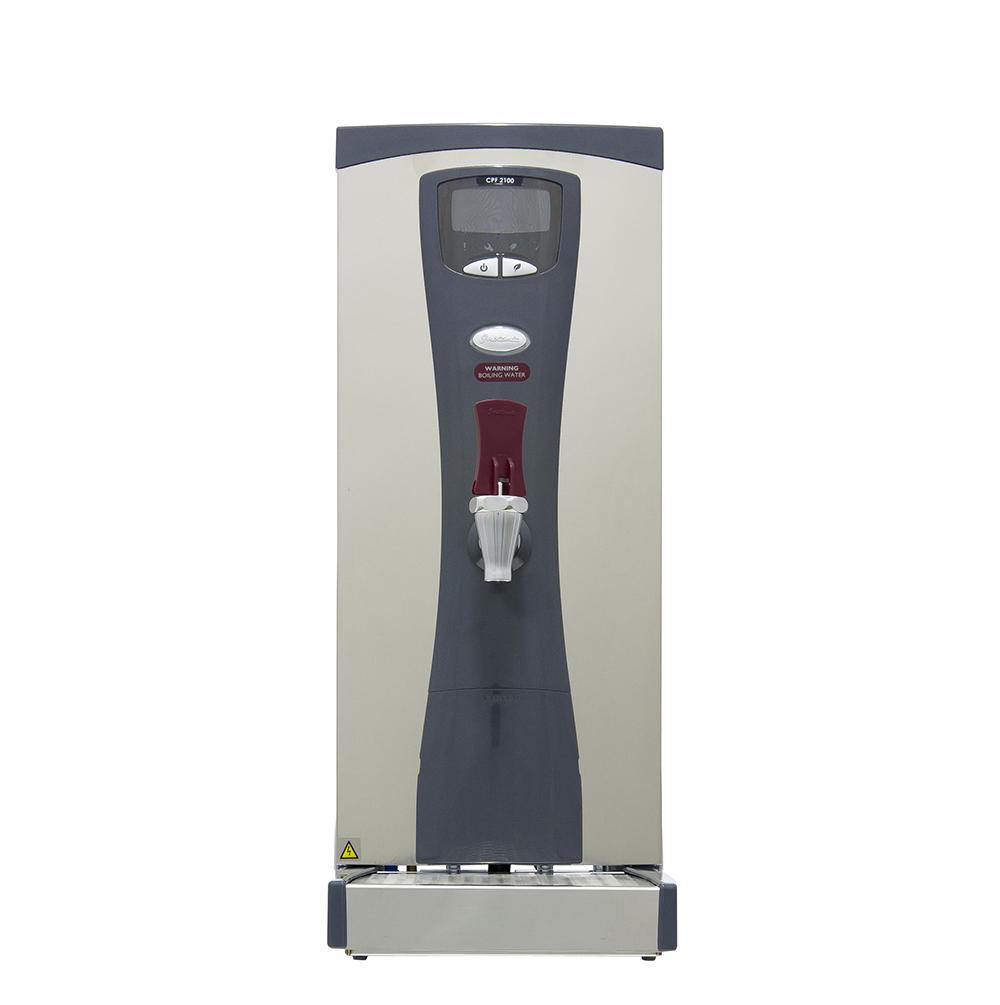

Instanta CTSP10 (CPF2100) 10 Litre Counter Top Water Boiler
Product Description
The Instanta CTSP10 is a plumbed-in, auto-fill counter top water boiler with a 10-litre capacity, designed to provide a continuous supply of hot water throughout the service day. It connects...
Specifications
- Capacity (litres)
- 10
- Country of origin
- UK
- External depth (mm)
- 555
- External height (mm)
- 610
Product Description
The Instanta CTSP10 is a plumbed-in, auto-fill counter top water boiler with a 10-litre capacity, designed to provide a continuous supply of hot water throughout the service day. It connects directly to the mains water supply, refilling automatically so there is no manual topping up required. A built-in filtration system treats the incoming water before it is heated, helping to protect the internal components and maintain water quality over time.
In a working kitchen or front-of-house environment, the CTSP10 performs reliably during sustained demand — whether that is a steady flow of hot beverages in a café, consistent hot water for prep tasks in a kitchen, or back-to-back service in a hotel or contract catering setting. The seven-day programmable timer allows operators to schedule heating periods around opening hours, so the unit is ready when service begins and not drawing energy unnecessarily outside of operating times. ECO mode provides an additional layer of energy management during quieter periods.
From an operational standpoint, the practical advantages are straightforward:
- Adjustable temperature control suits different applications, from beverage service to food preparation tasks
- Programmable filter monitor tracks usage and prompts replacement before water quality is affected
- Two-tier diagnostic system flags faults early, reducing the risk of unexpected downtime
- Stainless steel drip tray keeps the counter clean and simplifies daily maintenance
- Single-tap dispensing keeps the footprint compact on tight counter runs
Installation requires a mains cold water connection and a standard 13-amp socket, making it straightforward to position on most existing counter runs without specialist electrical work. The counter top format suits cafés, hotel serveries, staff restaurants, and smaller commercial kitchens where space is limited but reliable hot water demand is consistent. For sites with significantly higher throughput requirements, a larger-capacity wall-mounted or floor-standing boiler may be worth considering.
If you are unsure whether the 10-litre capacity is the right match for your service volume or workflow, our team is happy to talk it through with you.
Key Features
- Auto-fill mains-plumbed operation with 10-litre heated capacity
- Seven-day programmable timer for scheduled heating around service hours
- Integrated filtration system monitors usage from 2,000 to 19,500 litres
- Adjustable temperature control for varied beverage and prep applications
- Two-tier diagnostic system for early fault detection and reduced downtime
Operational Benefits
- Continuous hot water supply without manual refilling during busy service
- Programmable timer reduces energy consumption outside of operating hours
- Filter monitor prompts timely replacement, maintaining consistent water quality
- ECO mode lowers running costs during quieter periods without affecting readiness
- Compact counter top footprint fits into space-constrained service areas easily
Specifications
- Capacity (litres)
- 10
- Country of origin
- UK
- External depth (mm)
- 555
- External height (mm)
- 610
- External width (mm)
- 260
- Extra information
- WRAS approved
- Heat-up time
- 32 mins
- Machine output
- 28 Litres per hour
- Material
- 304 grade Stainless Steel (Superbrush polish)
- Power rating (kw)
- 3
- Power type
- 13amp Plug
- Rapid draw-off ltr
- 10
- Rear connection clearance mm
- 45
- Tap clearance to drip tray mm
- 200
- Temperature range (deg c)
- 80 - 98
- Weight (kg)
- 14.1
Frequently Asked Questions
- The CTSP10 is well suited to cafés with moderate to steady hot beverage demand, where a continuous but not extremely high-volume flow of hot water is needed. Because it auto-fills and maintains temperature throughout the day, it handles consistent use reliably. For sites with very high peak throughput — such as large event catering or high-volume hotel breakfast service — it is worth discussing whether a higher-capacity model would serve you better.
- The unit requires a mains cold water connection and a standard 13-amp plug socket, so in most cases it can be positioned on an existing counter without specialist installation work. You will need a nearby water supply point and adequate drainage for the drip tray. If your counter position does not have an existing water feed close by, a plumber will need to extend the supply before the boiler can be commissioned.
- The integrated filtration treats incoming mains water before heating, helping to reduce limescale build-up and protect the heating element over time — particularly useful in hard water areas. The programmable filter monitor tracks the volume of water processed and alerts you when the filter is due for replacement, so there is no need to estimate usage manually. Keeping on top of filter changes is the single most effective way to maintain performance and extend the working life of the boiler.
