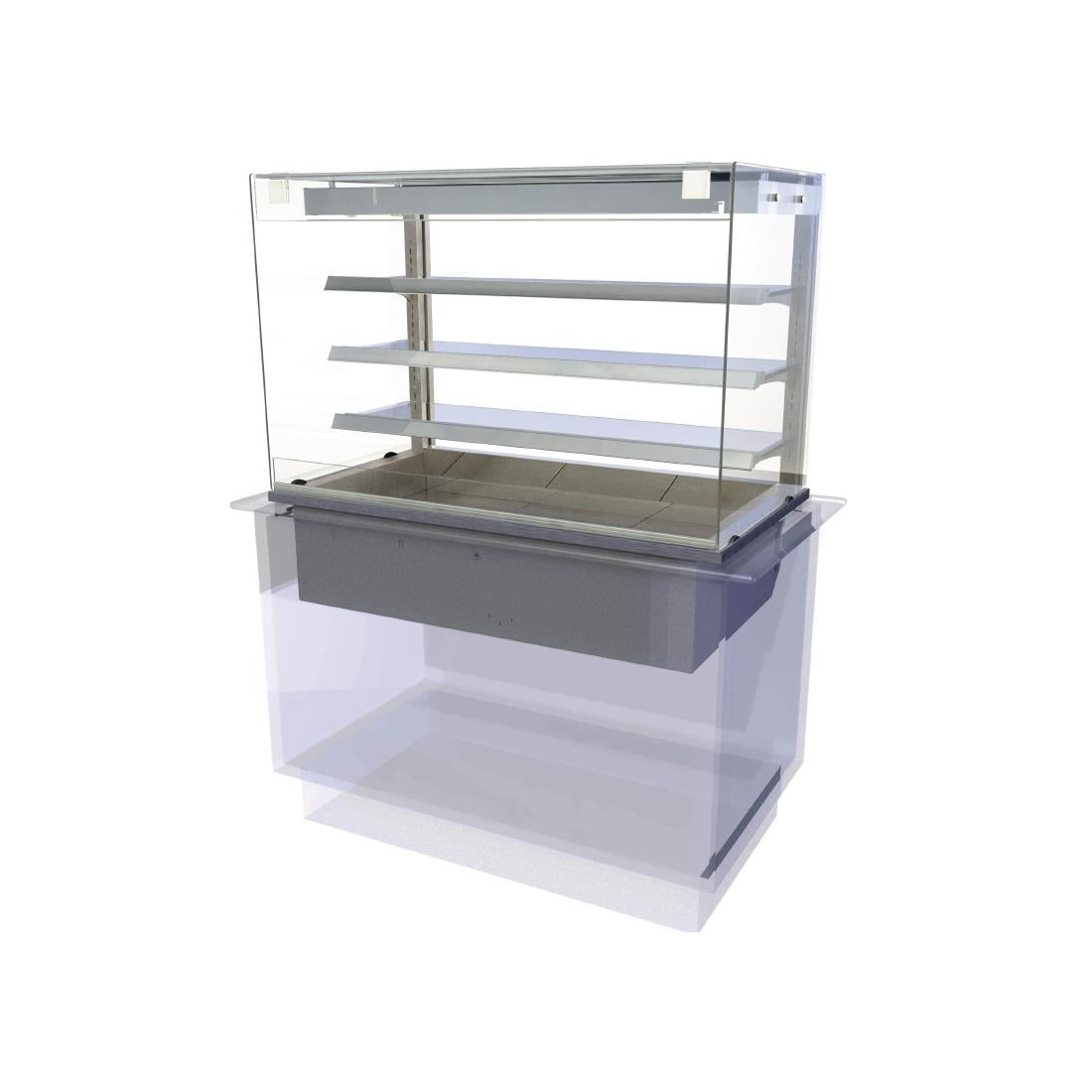

Kubus Drop In Ambient Multideck KMDA4 product image

Kubus

Kubus KMDA4 Drop-In Ambient Multideck Display Counter

SKU: CW643

£3,032.00(£3,638.40 inc VAT)
Get a quote

Request a callback

Leave your details and we will call you back about Kubus KMDA4 Drop-In Ambient Multideck Display Counter.

Delivery Information

Price Match

  • In the event of equipment failure any parts needed will be provided 1
  • In the event of equipment failure an engineer will be sent for an onsite repair 1

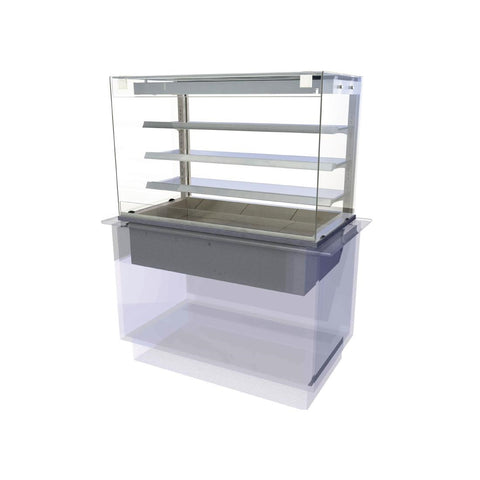

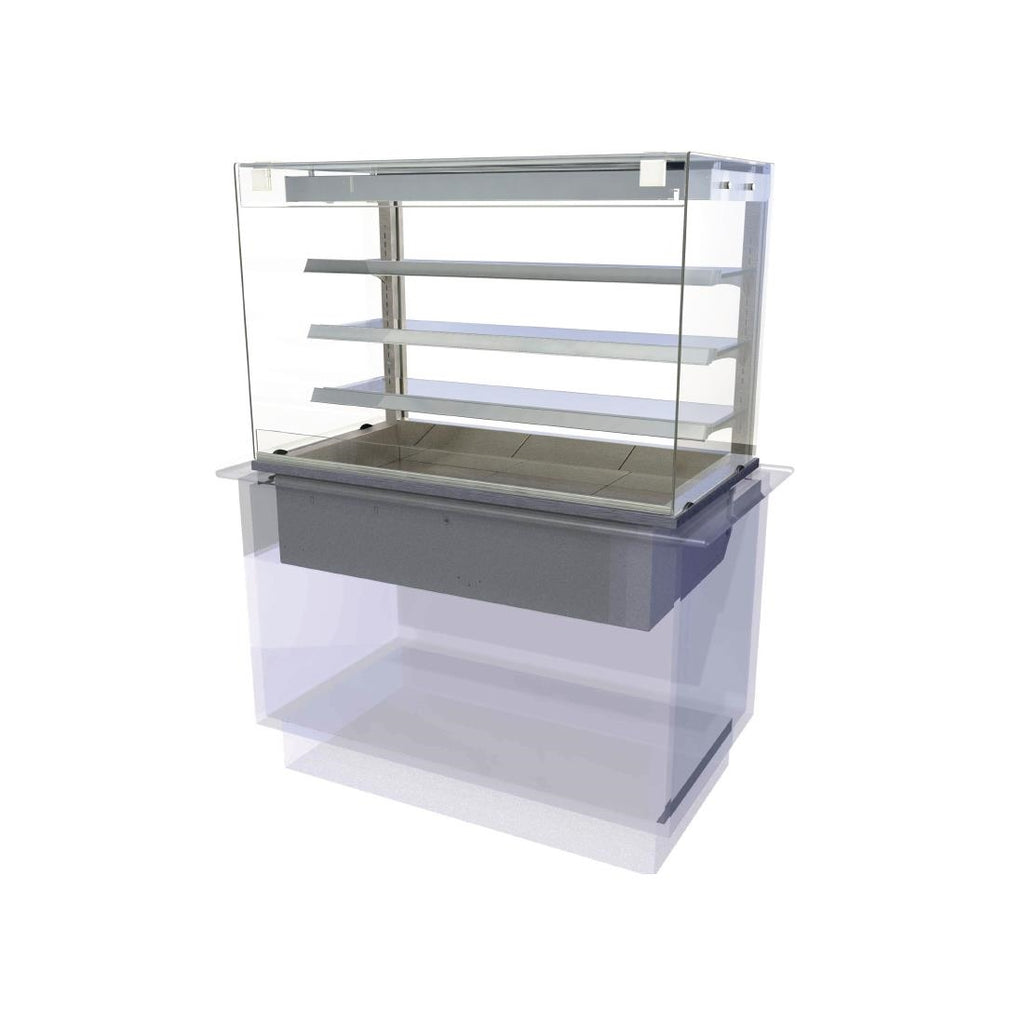

The Kubus KMDA4 is a drop-in ambient multideck display designed to sit flush within a countertop, combining a lower ambient well with a self-service superstructure above. It is used to present wrapped and unwrapped ambient food and drink — sandwiches, pastries, grab-and-go products, and similar items — in a retail or servery counter environment. The unit is not refrigerated; it holds product at ambient temperature while keeping it visible, protected, and accessible to customers or serving staff.

In practice, this type of display performs well where product turnover is steady and restocking is frequent. The open rear of the superstructure allows staff to replenish shelves quickly during service without disrupting customers at the front. The three toughened glass shelves are adjustable in both height and angle, which is particularly useful when the product mix changes between dayparts — a café running breakfast pastries in the morning and savoury items at lunch can adapt the layout accordingly. The diffused overhead lighting in the gantry illuminates product evenly, avoiding the harsh hotspots that can work against food presentation in hospitality environments.

  • Three height- and angle-adjustable toughened glass shelves for flexible product display
  • Toughened glass sneeze screen and side panels protect product on the customer side
  • Lower ambient well accepts standard GN configurations for additional merchandising space
  • Removable steel deck plates in the well simplify daily cleaning and maintenance
  • Open rear access allows quick, unobtrusive restocking during service

Installation requires a countertop opening sized to accept the drop-in unit. The display is supplied with a lifting kit, a 2-metre lead, and a plug top, making the electrical connection straightforward. At 152kg, the unit is substantial — the counter structure must be capable of bearing the load, and two people will be needed to position it safely. The stainless steel and aluminium construction is practical from a hygiene standpoint and holds up well in busy commercial environments. As with any ambient display, it performs best where the room temperature is properly controlled and the product range is appropriate for unrefrigerated presentation.

This unit is well suited to delis, café serveries, food-to-go counters, staff restaurants, and retail food environments where a permanent, well-presented ambient display is required within an existing counter. For sites with a larger product range or higher throughput, a wider or higher-capacity unit may be worth considering — and for those needing a freestanding rather than drop-in solution, alternative configurations are available within the range.

If you are working to a specific counter specification or are unsure whether ambient display suits your product range, our team is glad to talk it through with you.

Frequently asked questions

Is the KMDA4 suitable for chilled or refrigerated products?

No — the KMDA4 is an ambient display only and provides no refrigeration. It is designed for products that are safe to hold and present at room temperature, such as wrapped sandwiches, pastries, and packaged grab-and-go items. If your product range requires temperature control, a refrigerated multideck would be the appropriate choice.

What does the counter structure need to support this drop-in unit?

The counter must have a correctly sized cutout to accept the drop-in footprint and must be structurally capable of bearing the unit's 152kg weight. Two people are required to position and lower the unit safely, and the supplied lifting kit should be used during installation. If you are unsure whether your existing counter is suitable, it is worth checking with your counter manufacturer or fit-out contractor before ordering.

How well does this unit cope with a changing product mix across the day?

The adjustable glass shelves — which can be set at different heights and angles — make it straightforward to reconfigure the display between service periods. A site running pastries at breakfast and packaged savoury items at lunch, for example, can adapt the shelf layout to suit each range without significant disruption to service.
