Designline AG4 Drop-In Ambient Display Gantry Self-Service Counter
£724.00(£868.80 inc VAT)
Delivery Information
Price Match

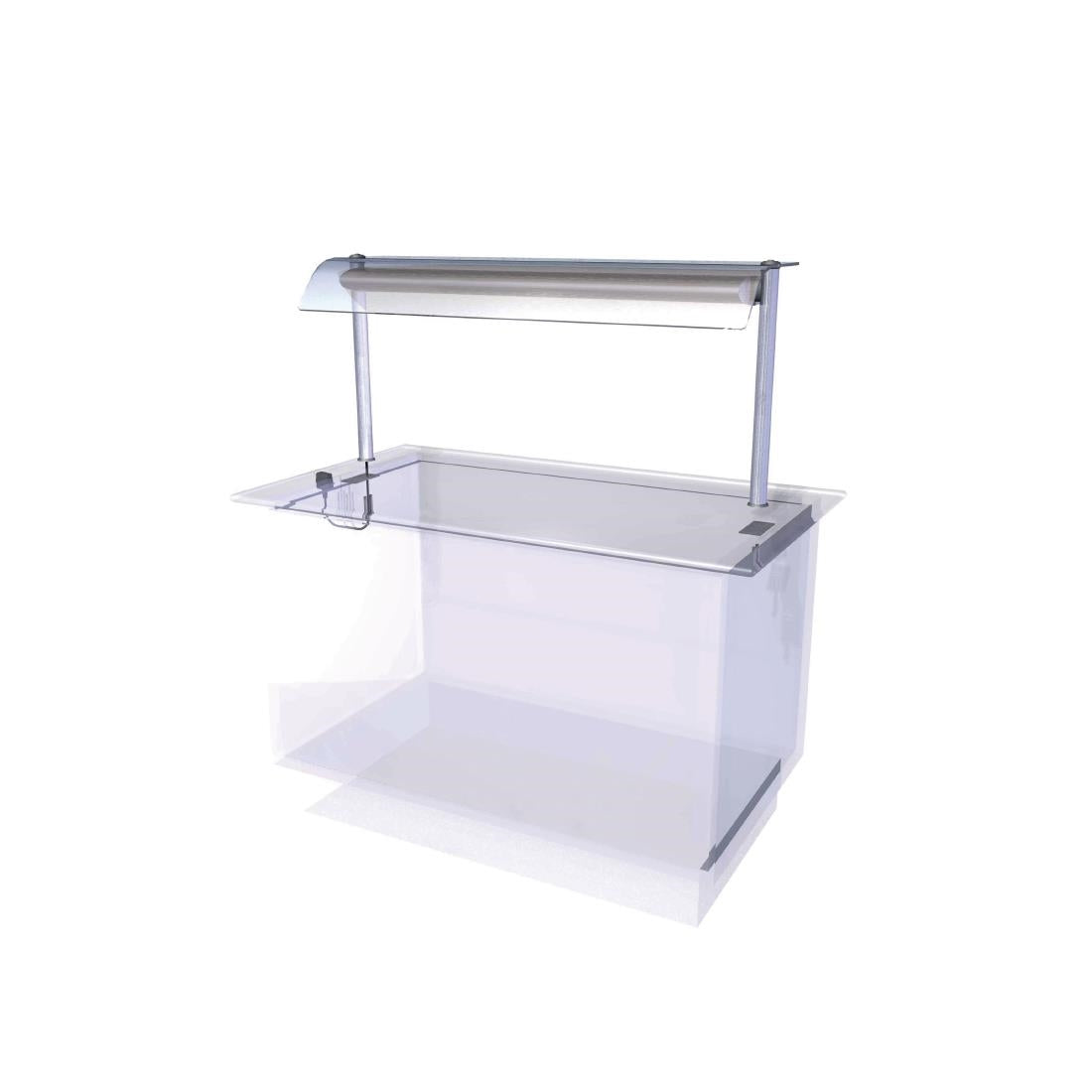

The Designline AG4 is a worktop-mounted ambient display gantry designed for self-service counters where food presentation and hygiene protection need to work together. Built from polished aluminium, stainless steel, and curved toughened glass, it sits across a 1500mm counter run and accommodates four full 1/1 GN containers at ambient temperature. Diffused overhead lighting is integrated into the canopy structure, with the switch positioned at the end of the unit for easy access during service without disrupting the display.
In practice, this type of gantry is well suited to salad bars, grab-and-go counters, and self-service buffet lines where customer-facing presentation matters and cross-contamination is a genuine operational concern. The curved glass sneeze screen protects displayed items without blocking sightlines, which keeps service moving and allows customers to identify food clearly. The diffused lighting lifts the display in a way that direct overhead light typically does not — food looks more appealing without the harsh shadows or glare that can work against presentation.
Practical benefits for operators include:
- Curved toughened glass sneeze screen reduces cross-contamination risk at self-service points
- Diffused integrated lighting improves food appearance without creating glare
- Post-fixing plates and bolts included for secure, stable counter mounting
- Polished aluminium and stainless steel surfaces are straightforward to wipe down between services
- End-mounted light switch keeps controls accessible without intruding on the display area
Installation involves securing the unit to the worktop using the included fixing hardware, and connecting to a standard electrical supply for the lighting. There are no refrigeration or water connections required. At 17kg, two people are advisable for positioning and securing the unit safely. GN containers are not included, so if you are fitting out a new counter from scratch, factor these into your order separately.
The AG4 is well suited to cafés, hotel breakfast counters, staff restaurants, leisure venues, and similar self-service environments handling a moderate volume of covers. If your counter run exceeds 1500mm or you need to display more than four full GN positions, a larger capacity model from the Designline range is worth considering. Equally, if your setup is smaller or more compact, there may be a more proportionate option available.
If you are working through a counter fit-out or are unsure whether this unit matches your layout, our team is easy to reach and happy to talk through the details with you before you make a decision.
Frequently asked questions
Is the AG4 suitable for a counter that runs longer than 1500mm?
The AG4 spans a 1500mm counter run and holds four full 1/1 GN positions, which suits many moderate-volume self-service setups well. If your counter is longer or you need to display more GN positions, it is worth looking at a larger capacity model from the Designline range — our team can help you work out what fits your specific layout.
What does installation involve, and are there any services needed?
The unit is worktop-mounted using the fixing hardware supplied in the box, so no specialist counter fabrication is required. The only service connection needed is a standard electrical supply for the integrated lighting — there are no water, drainage, or refrigeration connections involved. At 17kg, two people are recommended for safe positioning and fixing.
Does the AG4 keep food at a controlled temperature, or is it purely for display?
The AG4 is an ambient display gantry — it provides protection and presentation under integrated lighting, but it does not actively heat or chill the contents. It is designed for ambient-temperature items such as cold salads, bakery products, or pre-packaged grab-and-go food where temperature control is managed separately rather than within the gantry itself.
- Colour
- Silver
- Dimensions
- 535(H) x 1500(W) x 377(D)mm
- Gn size
- 1/1 GN full
- Material
- Curved Toughened Glass, Stainless Steel and Aluminium
- Power
- 100W, 230V, 13A
- Warranty
- 1 Year
- Weight
- 17kg
