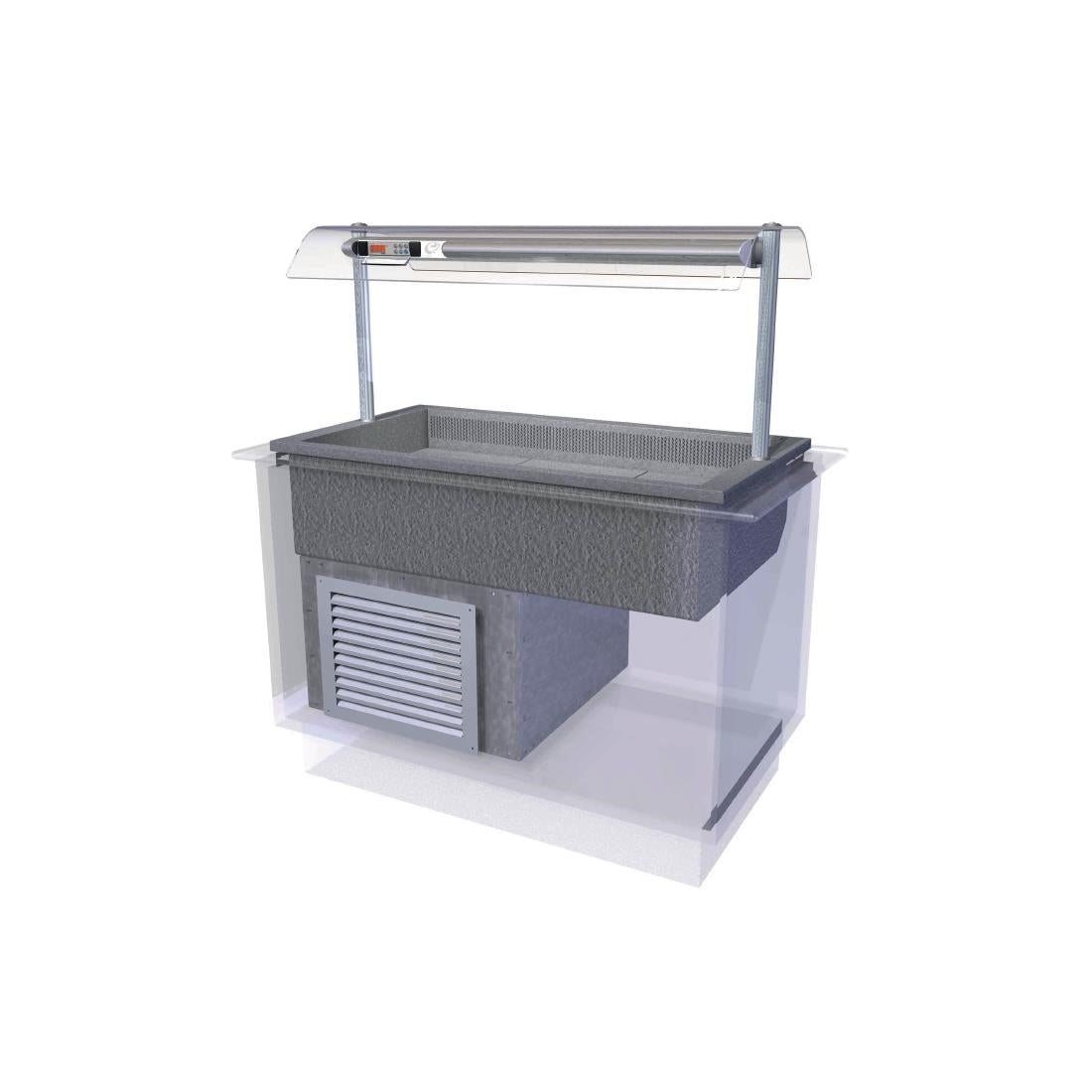

Designline Drop In Cold Island Well Self product image

Designline

Designline Drop-In Cold Island Well Self-Service 1525mm

SKU: CW608

£5,363.00(£6,435.60 inc VAT)
Get a quote

Request a callback

Leave your details and we will call you back about Designline Drop-In Cold Island Well Self-Service 1525mm.

Delivery Information

Price Match

  • In the event of equipment failure any parts needed will be provided 1
  • In the event of equipment failure an engineer will be sent for an onsite repair 1

The Designline cold island well is a drop-in refrigerated display unit designed to sit flush within a fabricated countertop, presenting chilled food in an open, accessible format for self-service. Its elliptical profile accommodates a curved toughened glass sneeze screen running along both sides, allowing customers to access the display from either direction — a practical arrangement for island-style servery counters where traffic flows from two sides.

Refrigeration is provided by an underslung condensing unit running on R290 hydrocarbon refrigerant, which carries a significantly lower global warming potential than older refrigerants. The system maintains food at safe chilled holding temperatures and is rated for continuous 24-hour operation, making it suitable for sites with extended service windows or overnight display requirements.

From a day-to-day operational standpoint, the unit has been designed with both hygiene and ease of service in mind:

  • Modular removable deck plates simplify cleaning between service periods
  • An integral condensate evaporator eliminates the need for a site drainage connection
  • Diffused gantry lighting presents product evenly without harsh spots
  • A digital temperature display and lockable control panel sit at operator level
  • Ventilation is managed through air inlet grilles supplied for fitting into the countertop cutout

Installation requires a suitable countertop opening sized to the unit, adequate access beneath the counter for the condensing unit, and a standard 13A connection via the supplied 2m lead. There is no requirement for a drainage run, which simplifies positioning where drainage access is limited. At 131kg, the unit places a significant load on the counter structure — confirming adequate support during counter fabrication or refurbishment planning is strongly advisable.

This unit is well suited to medium-volume self-service operations: hotel dining rooms, workplace restaurants, contract catering serveries, and food courts where chilled food display forms a central part of the counter layout. The 1525mm width accommodates four full GN positions, giving a solid range of menu presentation options. For operators covering longer runs or higher product throughput, larger configurations within the range may be worth considering. GN containers are sold separately.

If you are speccing a new counter build or integrating this unit into an existing servery, our team is glad to talk through countertop fabrication requirements and ventilation before you finalise anything.

Frequently asked questions

How much counter space and structural support does this unit require?

The unit drops into a fabricated countertop cutout matched to its footprint, with the condensing unit suspended beneath the counter surface. At 131kg, the counter structure needs to be designed or confirmed to carry that load — this is worth raising with your counter fabricator or fit-out contractor before installation rather than after.

Is this unit suitable for a high-volume food court or busy hospitality servery?

The 1525mm width provides four full GN positions, which suits a broad range of menu presentations at medium service volumes. For sites with very high product turnover or longer counter runs, a larger-capacity unit within the range may offer a better fit — we are happy to talk through your expected covers and service pattern to help you decide.

What are the installation utility requirements for this unit?

The unit connects via a standard 13A plug on the supplied 2m lead, so no dedicated electrical supply is required. Ventilation is handled through air inlet grilles supplied for fitting into the countertop cutout, and the integral condensate evaporator means there is no need for a drainage connection at the point of installation.
