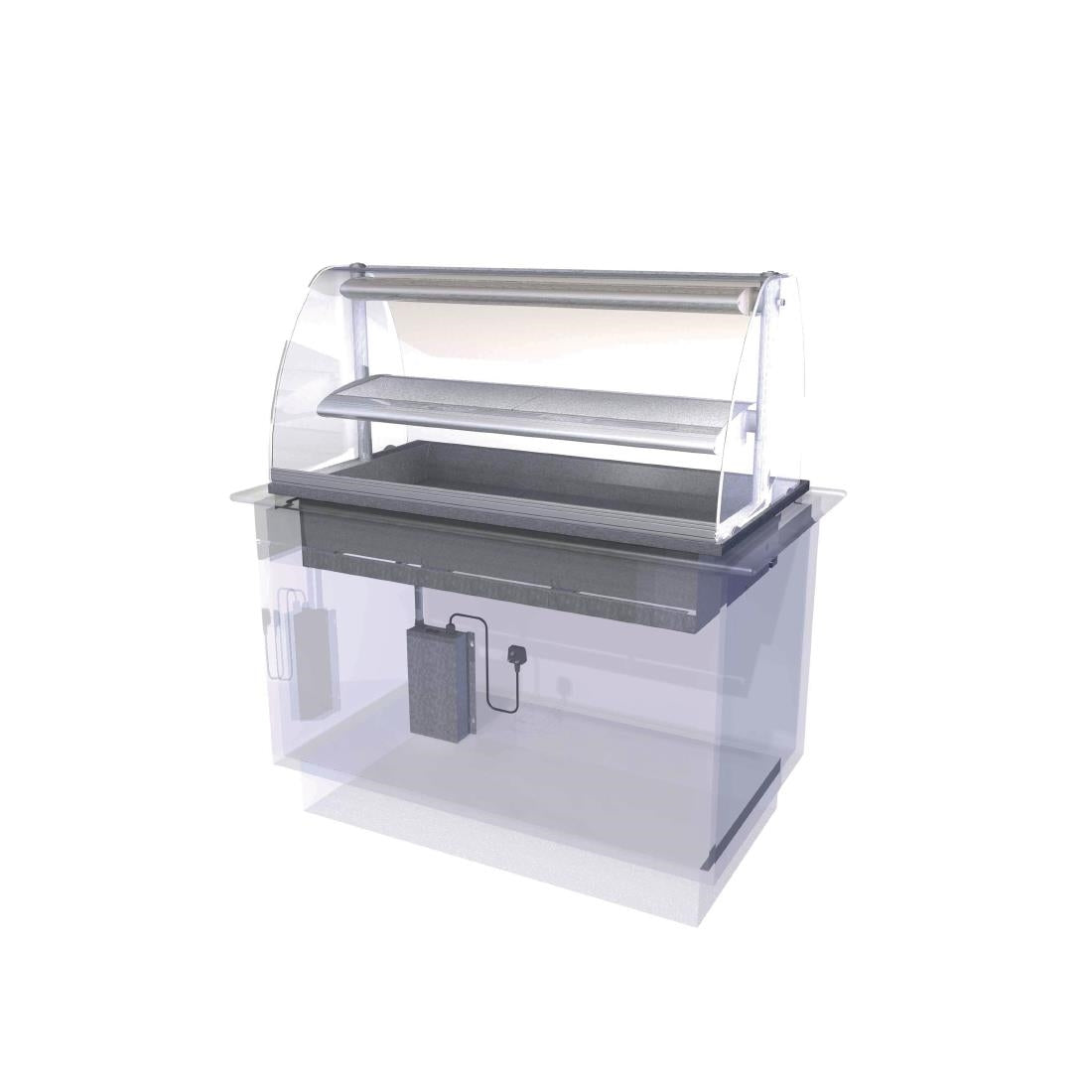

Designline Drop In Heated Serve Over Counter product image

Designline

Designline HDL3 Drop-In Heated Serve Over Counter 3 x 1/1 GN

SKU: CW616

£3,352.00(£4,022.40 inc VAT)
Get a quote

Request a callback

Leave your details and we will call you back about Designline HDL3 Drop-In Heated Serve Over Counter 3 x 1/1 GN.

Delivery Information

Price Match

  • In the event of equipment failure any parts needed will be provided 1
  • In the event of equipment failure an engineer will be sent for an onsite repair 1

The Designline HDL3 is a drop-in heated serve-over counter designed for assisted-service environments where pre-cooked food needs to be held at safe temperatures while remaining clearly visible to customers. It sits flush within a pre-formed cutout in a counter or servery top, housing three full 1/1 GN pans in a stainless steel base well, with a heated mid-shelf at eye level providing a second tier of display space.

In a busy service environment, consistent holding temperature is as important as presentation. The HDL3 uses infrared quartz heat lamps housed in the elliptical gantry to provide surface warmth and illumination, while heater mat elements beneath the GN well distribute heat evenly across the base. The unit is factory set to hold at 85°C and can be adjusted up to 110°C via a digital control panel and dimmer switches positioned on the operator side at a practical working height. Both base and surface heat can be locked once set, which is useful in high-throughput sites where holding conditions need to remain consistent across a full service period.

From an operational standpoint, the HDL3 is designed with service flow and day-to-day hygiene in mind:

  • Curved toughened glass front tilts forward on a locking hinge for straightforward cleaning between services.
  • Inclined GN well improves customer sightlines, reducing the need for staff to redirect attention to available dishes.
  • Infrared illumination enhances food presentation without creating uneven hot spots in the well.
  • Lockable temperature controls help maintain consistent holding conditions across a full lunch or dinner service.
  • Plug-top connection on a 2-metre lead simplifies commissioning and keeps cable management tidy.

Installation requires a pre-formed cutout in the countertop prepared to the correct dimensions, and a lifting kit is included to assist with fitting. At 102kg this is a substantial unit, so adequate personnel and access on installation day are important. It is worth confirming in advance that your counter material and substrate can take the weight, that the cutout is accurate, and that the superstructure height sits comfortably within your sightline planning — particularly in open-plan servery layouts.

The HDL3 is well suited to hotels, pub carveries, school and workplace restaurants, and deli-style food service counters running an assisted-service format with moderate to high lunchtime throughput. For operations requiring greater GN capacity or longer run lengths, a larger unit may be worth considering. Equally, if a three-GN footprint exceeds your counter or service requirements, lighter-duty drop-in options are available.

If you are specifying this unit as part of a new servery build or counter refurbishment, our team is happy to talk through the installation requirements before you commit — getting the counter construction and cutout dimensions right first time saves significant disruption on the day.

Frequently asked questions

Is the HDL3 suitable for a high-volume carvery running two sittings back to back?

The HDL3 is well suited to moderate to high throughput carvery and assisted-service operations, and the lockable temperature controls help maintain consistent holding across extended service periods. For very high-volume sites running continuous service with greater GN capacity requirements, it is worth discussing whether a larger-format unit would be a better fit before specifying.

What does the counter cutout preparation involve, and does the unit need a dedicated electrical supply?

The HDL3 drops into a pre-formed cutout in the counter or servery top, so the cutout needs to be prepared accurately to the correct dimensions before delivery — the unit ships with a lifting kit to assist with fitting. It connects via a standard plug top on a 2-metre lead, so a dedicated electrical circuit is not required, though it is worth confirming your counter substrate can support the 102kg installed weight.

How straightforward is the HDL3 to clean between services?

The curved toughened glass front tilts forward on a locking hinge, which gives reasonable access to the interior for cleaning between services without needing to remove the unit from the counter. The stainless steel base well and presentation surface are practical to wipe down, and the inclined GN well design avoids the more awkward cleaning angles found in some flat-well units.
