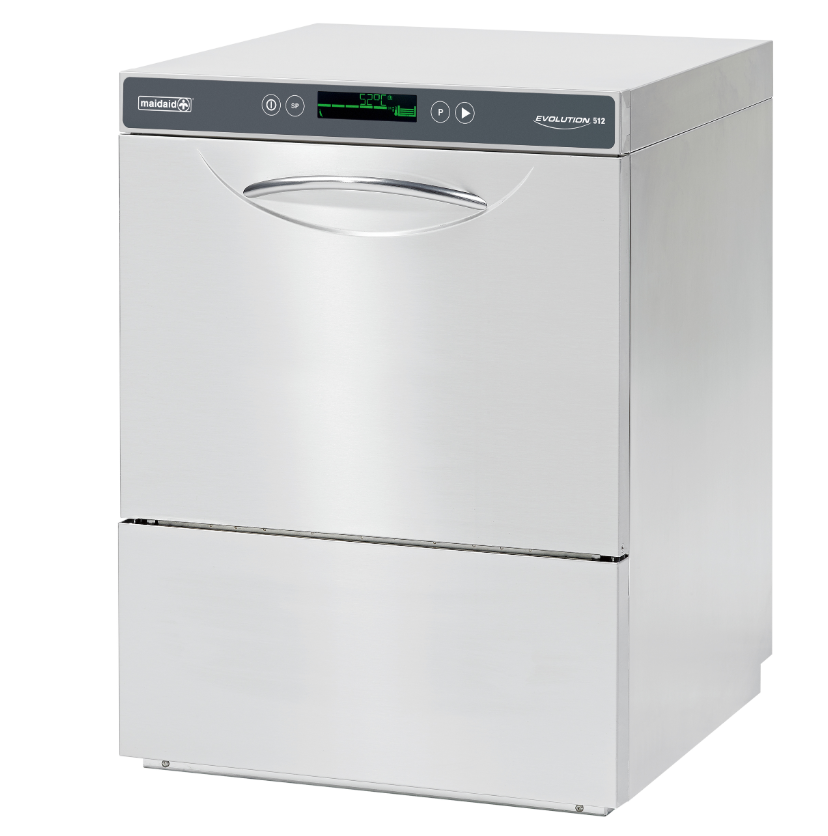

Maidaid Evolution 512 500mm Basket product image

Maidaid

Maidaid Evolution 512 500mm Basket Undercounter Dishwasher with Drain Pump

SKU: Evolution 512/13amp

£3,264.00(£3,916.80 inc VAT)

Power: 13 Amps
Get a quote

Request a callback

Leave your details and we will call you back about Maidaid Evolution 512 500mm Basket Undercounter Dishwasher with Drain Pump.

Delivery Information

Price Match

  • In the event of equipment failure any parts needed will be provided 2
  • In the event of equipment failure an engineer will be sent for an onsite repair 2
  • Equipment may be supplied with a moulded plug but may be more suitably connected to a fused spur
  • Equipment can be connected to a single phase power supply – must be installed by a competent person
  • Equipment can be connected to a three phase power supply – must be installed by a competent person
  • Equipment that should be connected to a suitably rated outlet - must be installed by a competent person

The Maidaid Evolution 512 is a 500mm basket undercounter dishwasher designed for continuous use in commercial kitchens. It operates as either a dishwasher or glasswasher depending on the configuration specified at the point of order, making it a practical option where operators need flexibility from a single unit. The machine is built around a moulded wash tank with triple filtration, a drain pump and break tank supplied as standard, and integrated peristaltic dosing pumps for both detergent and rinse aid — removing the need for separate ancillary purchases during installation.

In service, the Evolution 512 is designed to handle the demands of a busy kitchen without requiring constant operator attention. The parallel wash and rinse arm design improves wash coverage across the basket, and cycle times can be adjusted to suit the pace of service. A selectable thermostop function helps maintain rinse temperatures within the range required for effective sanitisation, which matters in environments where hygiene compliance is non-negotiable. The dual-flow wash pump features a soft start, which reduces peak power draw at cycle initiation — useful in kitchens where electrical load management is a consideration.

From a practical standpoint, the machine offers several operational advantages:

  • Polychromatic LCD display gives clear machine status at a glance during service
  • Four-button control fascia with self-diagnostics reduces the need for engineer call-outs for minor faults
  • Automatic end-of-service self-clean cycle reduces manual cleaning time
  • Fully double-skinned construction limits both heat loss and noise output
  • Moulded rack guides and stainless steel scrap tray filters simplify daily maintenance

Installation requires a mains water supply, drainage connection, and appropriate electrical supply. The break tank is included, so a separate air gap provision is handled within the unit itself. As an undercounter model, it is designed to fit within a standard counter run, though access to the sides and rear for servicing should be accounted for in the installation layout. The drain pump means the machine is not entirely dependent on gravity drainage, which gives more flexibility in positioning relative to the drain point.

The Evolution 512 is well suited to cafés, pub kitchens, small restaurants, and hospitality operations running a single-shift service or moderate cover numbers. It handles a solid volume of ware throughout a typical service period without the footprint or utility demands of a larger passthrough machine. For higher-volume sites running back-to-back services or larger cover counts, a higher-capacity model would be worth considering.

If you are unsure whether this machine suits your service volume, drainage layout, or kitchen configuration, the team is happy to talk it through before you commit to a purchase.

Frequently asked questions

Is the Evolution 512 suitable for use as a glasswasher as well as a dishwasher?

Yes — the Evolution 512 is available in either a dishwasher or glasswasher configuration. This needs to be specified at the point of order, as the rack and programme settings differ between the two. If you are unsure which configuration suits your operation, it is worth discussing with us before ordering.

Does the built-in drain pump affect where the machine can be positioned?

The drain pump gives the machine more flexibility than a gravity-drain-only unit, as it does not rely entirely on the drain point being directly adjacent or at a lower level. That said, there are still practical limits on lift height and run length, so it is advisable to confirm your drainage layout before installation.

What size of operation is the Evolution 512 designed for?

It is well suited to single-site operations such as cafés, pub kitchens, and small to medium restaurants running moderate cover numbers over a standard service period. Sites running consecutive services at high volume, or kitchens processing large quantities of ware continuously, may find a higher-capacity passthrough machine more appropriate.
