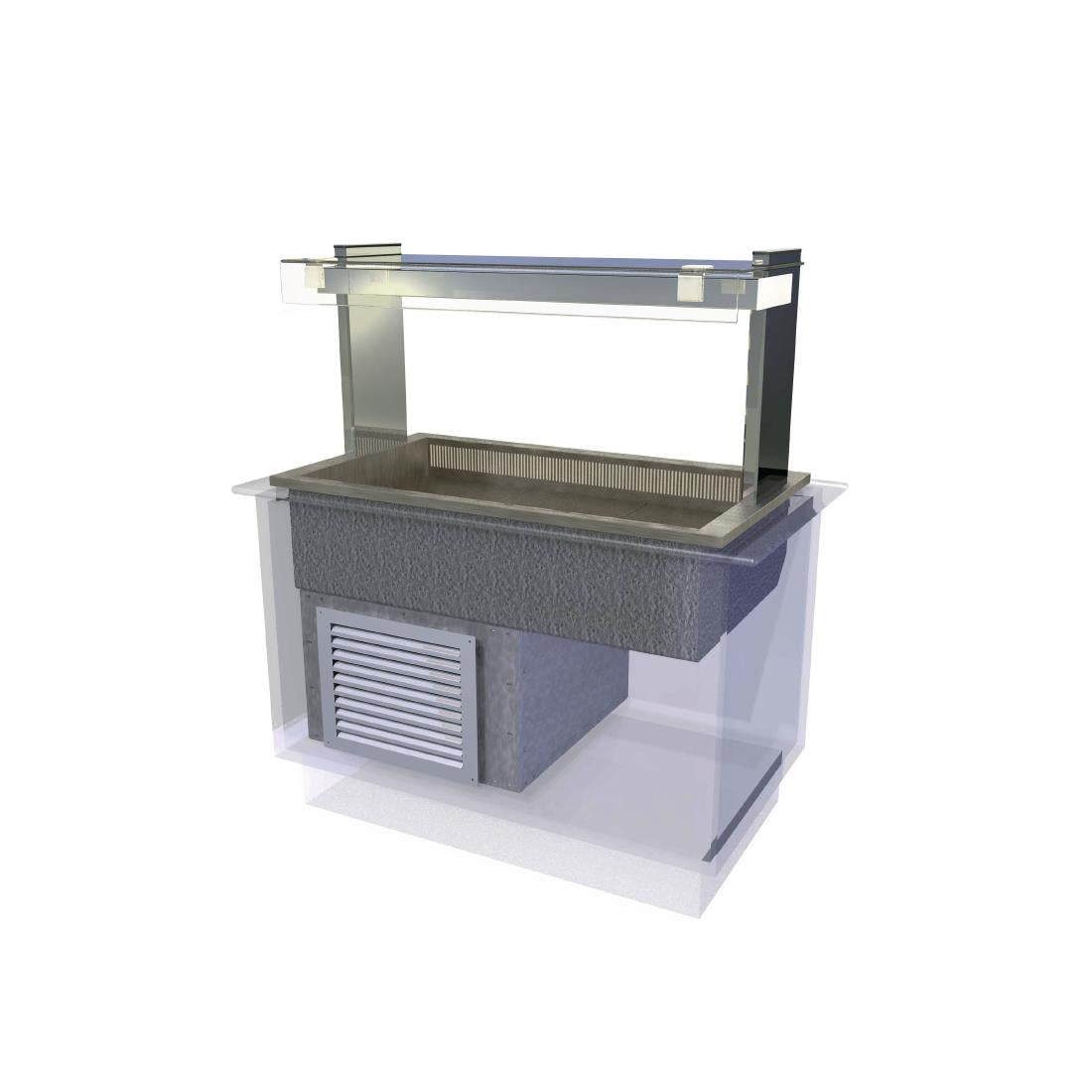

Kubus Drop In Cold Well Self Service 1175mm product image

Kubus

Kubus 1175mm Drop-In Cold Well Self-Service Display

SKU: CW632

£3,841.00(£4,609.20 inc VAT)
Get a quote

Request a callback

Leave your details and we will call you back about Kubus 1175mm Drop-In Cold Well Self-Service Display.

Delivery Information

Price Match

  • In the event of equipment failure any parts needed will be provided 1
  • In the event of equipment failure an engineer will be sent for an onsite repair 1

The Kubus 1175mm drop-in cold well is a refrigerated self-service display unit designed to sit flush within a fabricated or purpose-built service counter. It holds three full 1/1 GN pans and maintains a chilled temperature range suitable for food safety compliance in deli, food-to-go, and hospitality settings. Refrigeration is handled by an underslung condensing unit using R290 hydrocarbon refrigerant, a low global-warming-potential gas that tends to run more economically than older refrigerant types. The air grille kit is supplied, so no remote refrigeration circuit is required.

Rated for continuous 24-hour operation, this unit is built to cope with sustained front-of-house service rather than occasional use. The stainless steel and aluminium construction handles the rigours of daily service well, and the flat toughened glass sneeze screen provides a practical hygiene barrier on the customer-facing side. An eye-level digital temperature display lets staff confirm food safety compliance without interrupting service, and the temperature-lockable control panel prevents accidental adjustments during a busy period.

Several design details reduce the day-to-day burden on kitchen and counter staff:

  • Modular removable deck plates make cleaning between services straightforward
  • Integral condensate evaporator removes the need for a site drain connection
  • Diffused gantry lighting presents displayed products evenly without harsh hotspots
  • Supplied with a 2m lead and plug top for a standard electrical connection

Installation requires a correctly dimensioned counter-top cut-out and sufficient clearance beneath the counter for the condensing unit and ventilation grilles. At 116kg, the unit is substantial and the counter structure will need to be built or assessed to take that load. GN containers are not included and should be ordered separately.

This unit is well suited to cafés, hotel breakfast counters, deli bars, staff restaurants, and food-to-go operations where customers serve themselves from a chilled display. The three-pan capacity handles moderate service volumes comfortably. Operators running longer display runs or higher customer throughput may find a wider unit from the range more appropriate, while smaller or lower-volume installations may be better served by a more compact drop-in format.

If you are planning a counter build or retrofitting into an existing surface and want to talk through the cut-out dimensions, condensing unit clearance, or ventilation requirements before committing, the team is happy to work through the details with you.

Frequently asked questions

Is the three-pan capacity sufficient for a busy self-service counter?

Three full 1/1 GN pans suits moderate service volumes well — typical of a café, hotel breakfast counter, or staff restaurant where a single display run is in use. If you are running a high-throughput deli or a longer counter with multiple product zones, a wider unit from the range is likely to serve you better, and it is worth discussing your expected covers and product mix with us before deciding.

What does installation involve, and does it need a plumber or drainage point?

The unit drops into a correctly dimensioned counter-top cut-out, with the condensing unit sitting below the counter surface and ventilating through the supplied air grille kit. The integral condensate evaporator means no drain connection is required, which removes one of the more awkward installation steps. You will need adequate structural support in the counter for a unit of this weight, and sufficient void space beneath the worktop for the condensing unit and airflow clearance — it is worth confirming those dimensions against your counter build before ordering.

Can this unit be used in a counter that is already built, or is it only for new builds?

It can be retrofitted into an existing counter provided the cut-out dimensions are correct and there is sufficient clearance below for the condensing unit and ventilation. The main practical considerations are the structural load the counter can take and whether the void beneath the worktop is deep enough — if you are unsure, send us the counter dimensions and we can advise before any cutting work is done.
