Kubus KHDL3 Drop-In Heated Serve Over Counter 3x GN 1/1

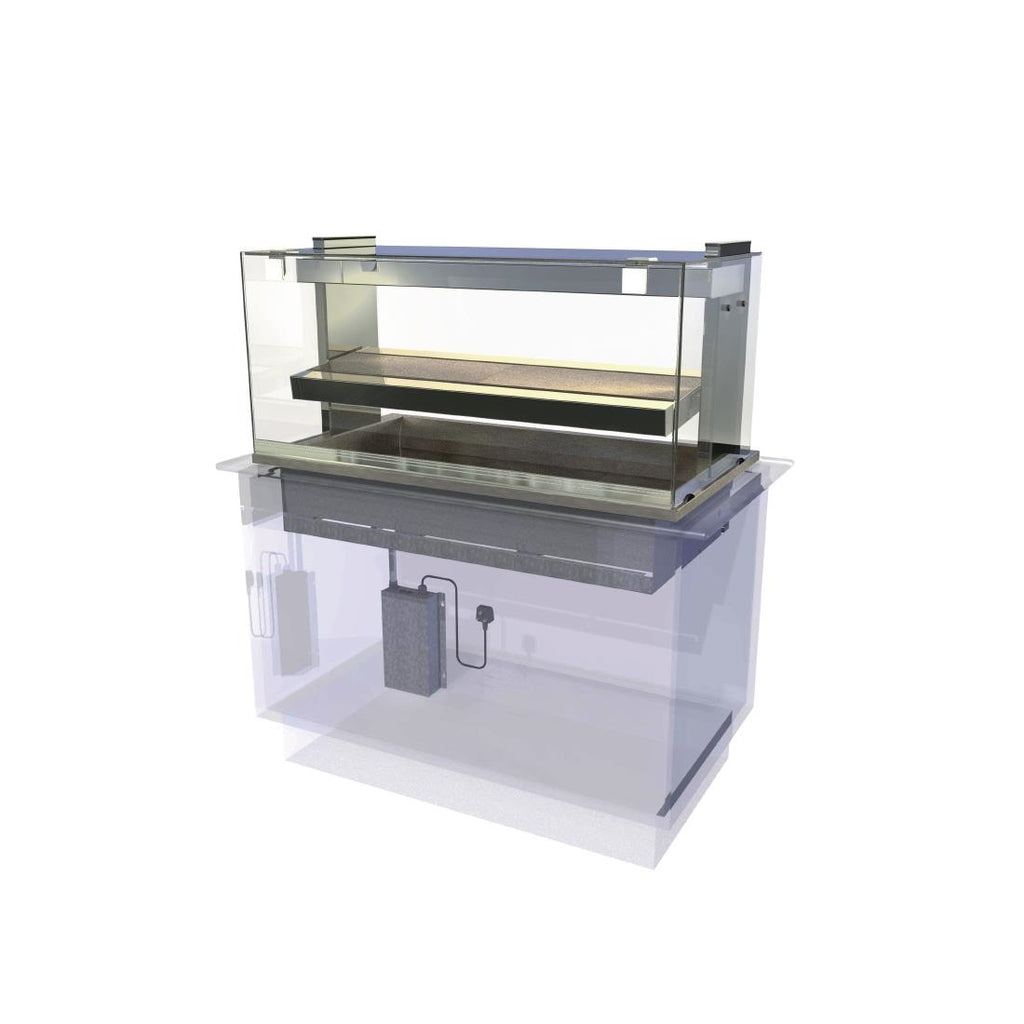

The Kubus KHDL3 is a drop-in heated serve over counter designed for assisted service applications. It sits flush into a pre-formed cutout in a countertop and provides a fully heated display zone for holding and presenting pre-cooked hot food at the point of service. The unit accommodates three 1/1 GN pans in a stainless steel base well, with an inclined presentation angle to improve visibility for both staff and customers. An adjustable heated midshelf at eye level extends the available display space without increasing the counter footprint.

Consistent holding temperature is critical during busy service periods. The KHDL3 uses modular heater mat elements beneath the well to distribute heat evenly across the base, which reduces the risk of cold spots associated with single-element designs. Infrared quartz lamps housed in the gantry and midshelf provide surface heat and product illumination simultaneously. The unit is designed to hold food at the correct service temperature and is capable of continuous operation where required, making it a practical choice for counters running through extended or multi-session service periods.

Day-to-day operation is straightforward to manage at the counter:

• Base heat and lamp intensity are independently adjustable via digital controls on the operator-facing gantry
• Settings can be locked to prevent unintended adjustments during service
• The front glass tilts forward on a locking hinge, allowing clear access for cleaning without dismantling the display
• The stainless steel well surface simplifies removal of pastry debris and food residues
• A concealed control box and plug-top lead keep the finished installation tidy

Installation requires a pre-formed cutout in a suitable countertop to the manufacturer's specified dimensions. At 107kg the unit is substantial, and the counter structure will need to be capable of bearing that load before fitting begins. A standard plug-top connection is supplied, so no specialist electrical work is required in most cases, though the counter preparation should be factored into the overall installation plan. A lifting kit is included with the unit. GN containers are sold separately.

The KHDL3 is well suited to hotels, contract catering operations, staff restaurants, and retail food counters where a permanent, high-capacity hot display is needed at the point of service. The three-pan configuration is practical for mid-to-high volume service. For smaller counters or lighter service volumes, a single- or two-pan drop-in unit may be more proportionate. For very high-throughput operations presenting a broader range of dishes, a larger or multi-section configuration may be worth considering.

If you are specifying this unit as part of a new counter build or refitting an existing servery, we are happy to talk through cutout requirements, load-bearing considerations, or how the display will integrate with your wider counter layout before you go ahead.
