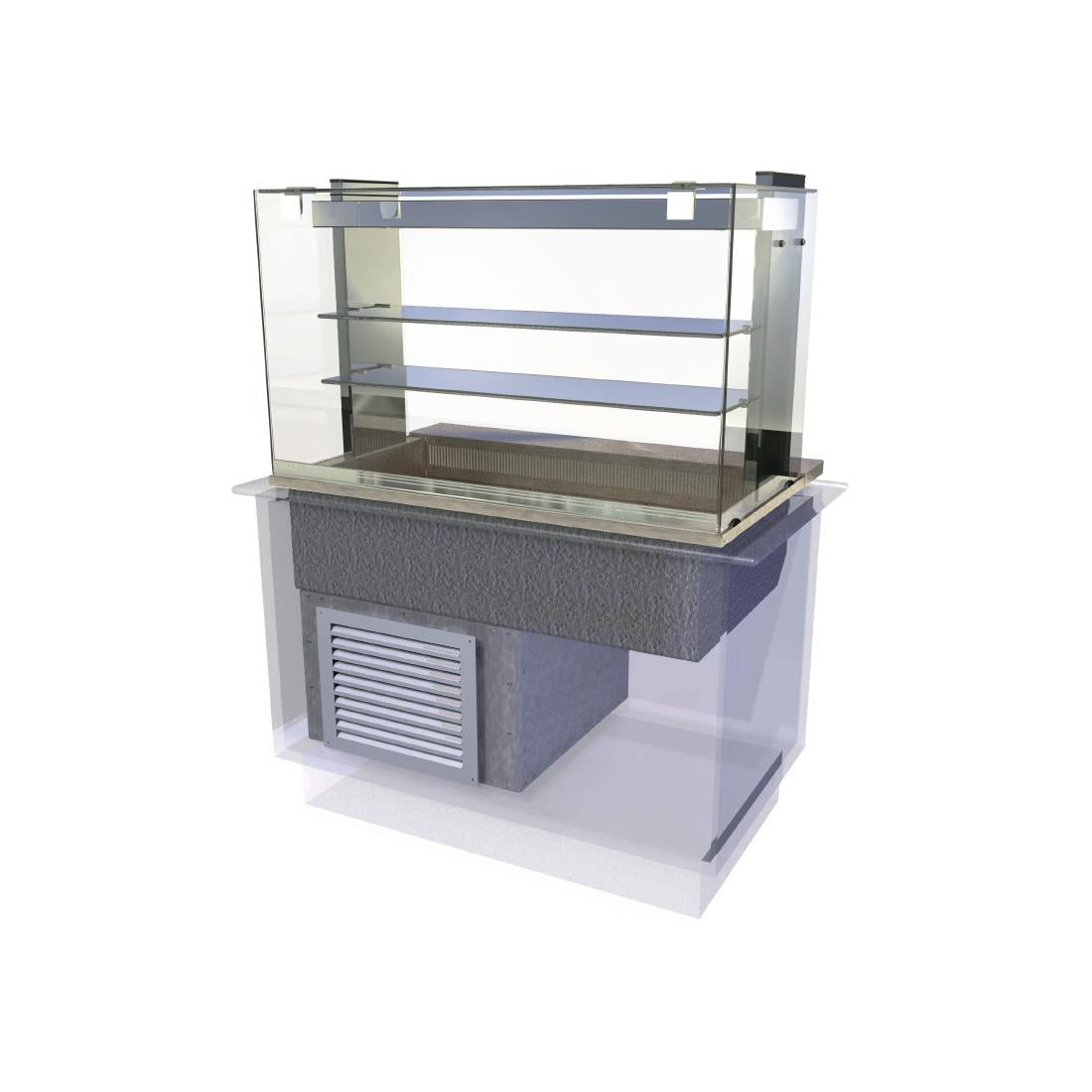

Kubus Drop In Multideck Assisted Service product image

Kubus

Kubus Drop-In Multideck Assisted Service Counter 1525mm KCMDL4HT

SKU: CW631

£6,278.00(£7,533.60 inc VAT)
Get a quote

Request a callback

Leave your details and we will call you back about Kubus Drop-In Multideck Assisted Service Counter 1525mm KCMDL4HT.

Delivery Information

Price Match

  • In the event of equipment failure any parts needed will be provided 1
  • In the event of equipment failure an engineer will be sent for an onsite repair 1

The Kubus KCMDL4HT is a refrigerated drop-in multideck unit built for assisted service counters. It sits within a prepared countertop opening and provides a chilled, illuminated display held between -1°C and 5°C throughout service. The chilled well accommodates four full 1/1 GN pans side by side, and a tilting front glass panel on a locking hinge gives staff clean access to the display area without disrupting the layout. An overhead gantry profile with integrated lighting keeps food well presented without the need for separate spotlights.

In a service environment where throughput is continuous, temperature consistency matters as much as presentation. The unit runs on R290 hydrocarbon refrigerant, which offers lower global warming potential than older HFC alternatives and supports efficient chilling throughout a full service period. Two toughened glass mid-shelves add ambient display space above the chilled well, and optional chopping boards over the rear shelf allow light sandwich preparation within the same counter footprint.

  • Tilting front glass panel provides unobstructed access to the chilled display
  • Integral condensate evaporator eliminates the need for a site drainage connection
  • Removable deck plates in the chilled well support thorough end-of-day cleaning
  • R290 refrigerant delivers efficient chilling with reduced environmental impact
  • Overhead gantry illumination presents food clearly without additional lighting

Installation requires a pre-cut countertop opening sized to the unit footprint. The condensing unit is underslung and draws ventilation through inlet grilles supplied with the unit — these must remain clear at all times during service. At 175kg, the unit is substantial, and both the counter structure and floor loading should be assessed before fitting. The unit ships with a 2m lead and 13A plug top, which suits most counter installations without additional electrical work, though your installation team should confirm suitability for your specific setup.

This unit is well suited to cafés, hotel serveries, staff restaurants, and grab-and-go counters where chilled food is displayed and served by staff across a full service period. It is a practical choice for medium-volume operations needing a clean, well-lit refrigerated display within an existing counter build. For wider counter runs or higher-volume sites, a larger-capacity alternative may be more appropriate. In self-service environments, a different display format is likely to serve better.

If you have questions about whether this unit suits your counter configuration or service style, our team is glad to talk through the detail with you before you proceed.

Frequently asked questions

Does this unit require a drainage connection during installation?

No. The KCMDL4HT incorporates an integral condensate evaporator, which means condensate is dealt with internally and no site drainage point is needed. This simplifies the counter build considerably, particularly in locations where running a drain to the counter position would be difficult.

What ventilation does the condensing unit need?

The condensing unit is underslung beneath the counter and draws ventilation through inlet grilles supplied with the unit, which are fitted to the counter front. No additional mechanical extraction is typically required above the counter, but it is important that the grilles are kept completely clear during service — restricted airflow will affect chilling performance and could cause the unit to trip.

Is this unit suitable for a self-service environment?

The KCMDL4HT is designed for assisted service, where staff control access to the display. The tilting front glass and counter-integrated format are well suited to that workflow. For a self-service setting where customers reach directly into the display, a different multideck format — typically one with an open or sliding-door front — would be more appropriate. If you are unsure which format suits your operation, it is worth discussing your service style with us before selecting a unit.
