Kubus KMDR4HT Drop-In Self-Service Multideck 1525mm

SKU: CW647

£5,993.00(£7,191.60 inc VAT)
Get a quote

Request a callback

Leave your details and we will call you back about Kubus KMDR4HT Drop-In Self-Service Multideck 1525mm.

Delivery Information

Price Match

  • In the event of equipment failure any parts needed will be provided 1
  • In the event of equipment failure an engineer will be sent for an onsite repair 1

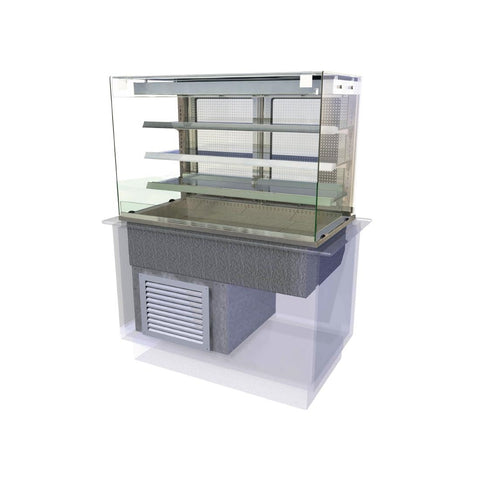

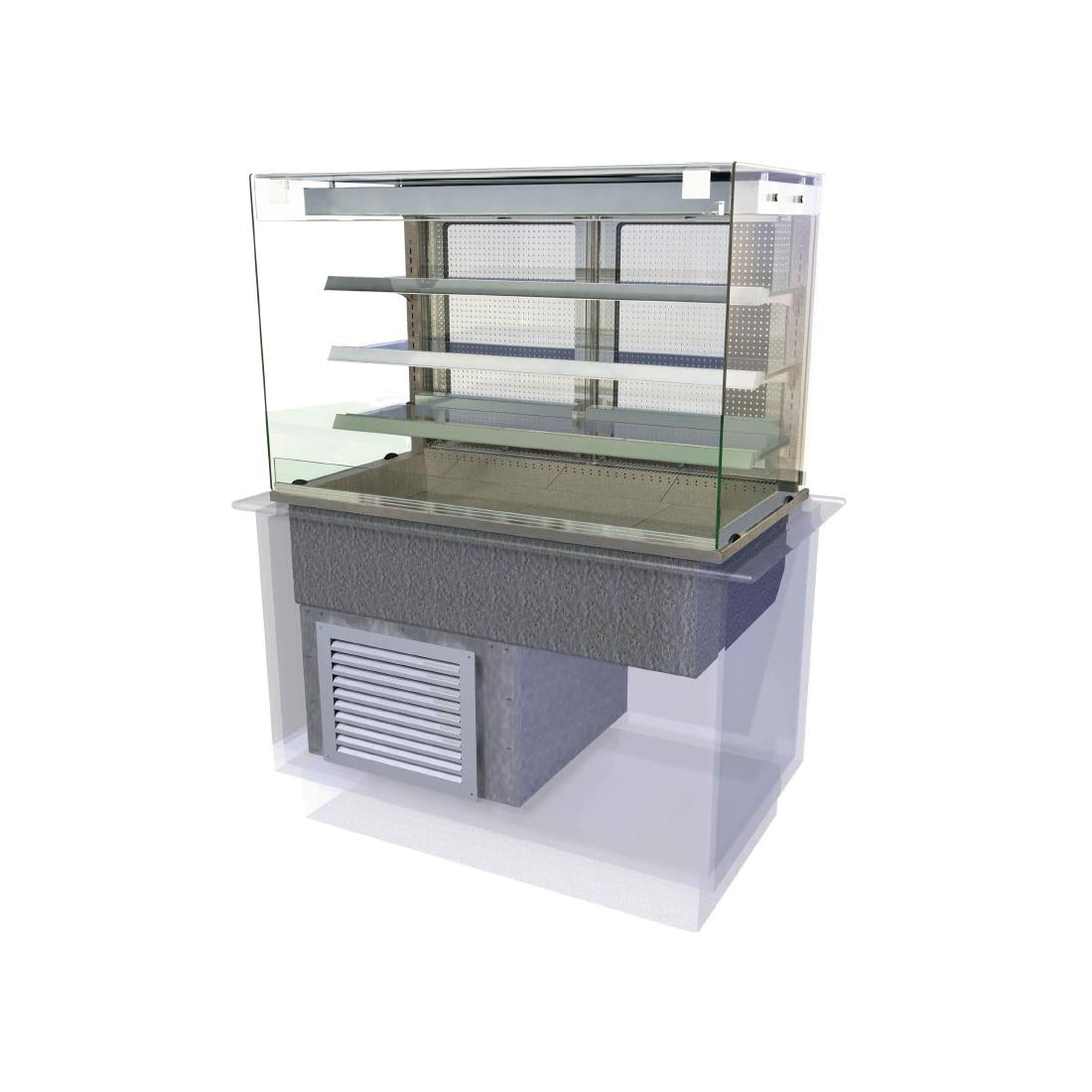

The Kubus KMDR4HT is a 1525mm wide drop-in self-service multideck designed to be set into a freestanding countertop. It provides open-front chilled display across three adjustable glass shelves, a chilled GN well beneath the display area, and double-glazed hinged rear doors for staff restocking. Refrigeration is handled by a self-contained R290 system with the condensing unit mounted underslung, ventilated through the air inlet grilles and rear vent supplied with the unit. The integral condensate evaporator removes any need for site drainage.

The KMDR4HT is rated for continuous 24-hour operation and holds food core temperatures safely within the chilled range throughout service. The double-glazed rear doors help contain cold during quieter trading periods, which also reduces running load over the course of a day. Diffused gantry lighting presents products clearly and consistently, and the eye-level digital temperature display allows staff to carry out at-a-glance checks without interrupting service. The lockable temperature control panel prevents accidental or unauthorised adjustments during busy periods.

From a day-to-day operational standpoint, the unit has been designed with practical running in mind:

  • Modular removable deck plates simplify thorough cleaning between services
  • Height- and angle-adjustable shelves allow layouts to be adapted to your product mix
  • Each shelf edge includes a product stop and 40mm ticket strip for labelling and pricing
  • The underslung self-contained refrigeration removes the need for remote condenser provision
  • A 2m lead and plug allows straightforward electrical connection on site

Installation requires a suitable counter build with adequate clearance beneath the unit for the underslung condensing unit, and correct fitting of the supplied grilles and rear vent. At 212kg, the unit will need appropriate access and handling equipment on delivery. The ventilation path for the condensing unit must remain unobstructed within the finished counter — this is an important point to confirm with your counter manufacturer or installer before committing to a specification, as restricted airflow will affect refrigeration performance.

This unit is well suited to supermarkets, convenience stores, food-to-go operations, delicatessen counters, and retail food environments where customers serve themselves and staff restock from behind. The 1525mm width represents a practical mid-size option for sites with moderate to high display requirements. For lower-footfall sites or smaller counter builds, a narrower drop-in unit may be the more proportionate choice; for high-volume operations with greater continuous display demands, a wider configuration or multi-section arrangement is worth considering.

If you are working through a counter specification or want to confirm this unit is the right fit for your planned installation, our team are glad to talk it through with you before you place an order.

Frequently asked questions

What type of counter installation does the KMDR4HT require?

The KMDR4HT is a drop-in unit designed to be set into a freestanding countertop build. The underslung condensing unit requires adequate clearance beneath the unit and an unobstructed ventilation path through the supplied air inlet grilles and rear vent — this must be factored into the counter design before ordering. It is worth confirming these clearance requirements directly with your counter manufacturer or shopfitter at the specification stage.

Is this unit suitable for continuous overnight operation in a retail environment?

Yes, the KMDR4HT is rated for continuous 24-hour operation and is designed to hold food core temperatures consistently within the safe chilled range. The double-glazed rear doors help reduce cold loss and running load during quieter overnight periods, which is a practical consideration for retailers who do not fully shut down their display counters between trading days.

How do I decide whether the 1525mm width is right for my site?

The 1525mm footprint and four-GN capacity make this a practical choice for moderate to high-volume self-service display counters in convenience retail, food-to-go, and deli environments. If your counter run is shorter or your product volume is lower, a narrower drop-in unit is likely a better fit; for high-footfall sites requiring greater continuous display capacity, a wider or multi-section arrangement may serve you better. Our team can help assess the right configuration based on your display requirements and counter dimensions.
