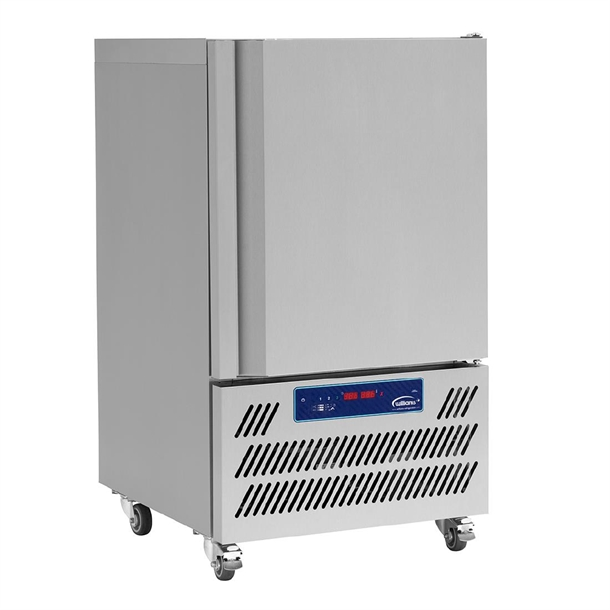

Williams WBCF20-SS 20kg 6 Grid Blast Chiller Freezer
Product Description
The Williams WBCF20-SS is a reach-in blast chiller and freezer with a 20kg load capacity and a six-grid interior. It handles both blast chilling and blast freezing within a single...
Specifications
- Capacity (grids)
- 6
- Capacity (kg)
- 20
- External depth (mm)
- 805
- External height (mm)
- 1274
- Capacity
- 20kg
- Refrigerant
- R290
Product Description
The Williams WBCF20-SS is a reach-in blast chiller and freezer with a 20kg load capacity and a six-grid interior. It handles both blast chilling and blast freezing within a single cabinet, which makes it a practical choice for kitchens that need to switch between the two modes depending on what is coming out of service. Williams engineered this unit around AirSmart airflow technology, which distributes cold air evenly across the full load rather than concentrating it at a single point — a meaningful difference when consistent results and food quality matter across the entire batch.
In a working kitchen, the ability to chill a full load reliably and repeatedly across a shift is what determines whether a blast chiller supports workflow or creates a bottleneck. The WBCF20-SS is built for the demands of busy prep and post-service cycles, bringing hot food down to safe storage temperatures within food safety guidelines and holding those temperatures without drift. R290 refrigerant supports efficient operation and meets current environmental standards without compromising performance in warm kitchen environments.
From an operational standpoint, several practical advantages are worth noting:
- Dual blast chilling and blast freezing modes within a single cabinet footprint
- AirSmart even airflow helps preserve texture, moisture, and product quality across the load
- Straightforward controls with customisable cycle options and audible end-of-cycle alerts
- Stainless steel construction throughout supports hygiene and durability under daily kitchen use
- Self-closing door reduces temperature loss during busy service periods
Installation is relatively straightforward for a unit of this class, but it is worth confirming your available electrical supply before ordering. As an R290 unit, adequate rear and top clearance is required for ventilation — particularly relevant in kitchens where ambient temperatures run high. The six-grid configuration means it is worth verifying GN tray compatibility against your existing stock before delivery.
The WBCF20-SS is well suited to mid-sized hotel kitchens, restaurants, contract caterers, and central production units where blast chilling and freezing of batched food is a regular daily requirement. It makes most sense where a single-function blast chiller would not cover all needs, but where a larger multi-rack unit would represent more capacity than the operation genuinely justifies. For sites with significantly higher throughput or larger batch volumes, a heavier-duty model with greater load capacity may be the more appropriate choice.
If you would like to talk through whether the 20kg capacity is the right fit for your service volumes, or if you have specific questions about installation requirements, the team is glad to help you work through it before you make a decision.
Key Features
- Dual blast chill and blast freeze modes within a single reach-in cabinet
- AirSmart airflow distributes cold air evenly across a six-grid interior
- 20kg load capacity handles substantial batched food volumes per cycle
- R290 refrigerant system supports efficient operation in warm kitchen environments
- Self-closing door with customisable cycle controls and end-of-cycle audible alert
Operational Benefits
- Switches between chill and freeze modes to match post-service kitchen demands
- Even airflow preserves food texture and moisture quality across the full load
- Brings hot batches to safe storage temperatures reliably throughout a busy shift
- Single cabinet footprint reduces equipment floor space compared to two separate units
- Stainless steel construction withstands heavy daily use and simplifies hygiene routines
Specifications
- Capacity (grids)
- 6
- Capacity (kg)
- 20
- External depth (mm)
- 805
- External height (mm)
- 1274
- External width (mm)
- 707
- Insulation
- 75mm
- Internal depth (mm)
- 350
- Internal finish
- Stainless Steel
- Internal height (mm)
- 700
- Internal width (mm)
- 587
- Material
- Stainless Steel
- Max ambient temp deg c
- 43
- Power type
- 13amp Plug
- Refrigerant
- R290
- Temperature range (deg c)
- -18 to +90
- Capacity
- 20kg
- Refrigerant
- R290
Frequently Asked Questions
- The 20kg load capacity is generally well matched to mid-sized operations — restaurants, hotel kitchens, and contract catering sites producing batched food regularly but not in large-scale volumes. If your kitchen runs multiple large batch cycles back to back during a single service, or if you are producing for a central production unit with high daily throughput, it is worth speaking to us before ordering to assess whether a higher-capacity model would be more appropriate.
- You will need to confirm your available electrical supply is compatible before delivery. The unit also requires adequate clearance at the rear and top for ventilation — this is particularly important in kitchens where ambient temperatures are consistently high, as restricted airflow can affect refrigeration performance. It is also worth checking that your existing GN tray stock is compatible with the six-grid interior before the unit arrives on site.
- For many kitchens the answer is yes, even if blast freezing is not an immediate requirement. Having both modes within a single cabinet gives you flexibility as your menu or production volume changes, without the need for additional equipment or floor space. If your operation is genuinely limited to occasional chilling of small batches, a single-function unit at a lower capacity may represent better value — something the team can help you assess.
