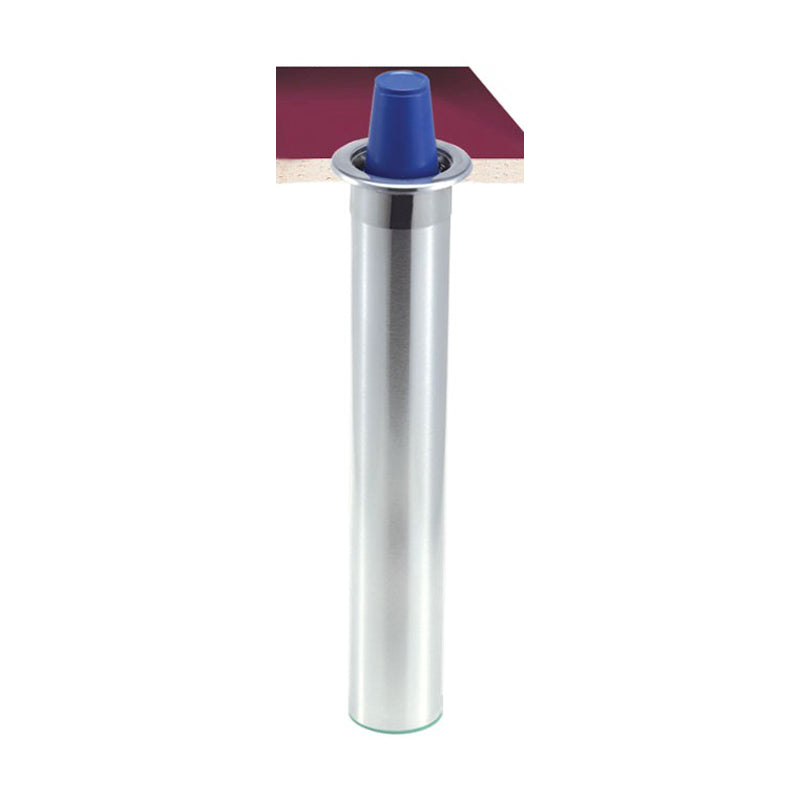

San Jamar C3200CV 6-10oz Vertical Counter product image

San Jamar

San Jamar C3200CV Vertical In-Counter Cup Dispenser 6–10oz - 56-81mm

SKU: C3200CV

£139.00(£166.80 inc VAT)
Get a quote

Request a callback

Leave your details and we will call you back about San Jamar C3200CV Vertical In-Counter Cup Dispenser 6–10oz - 56-81mm.

Delivery Information

Price Match

The San Jamar C3200CV is an in-counter cup dispenser designed to hold and present 6 to 10oz cups at counter level through a fixed cut-out in the service surface. Rather than sitting on top of the counter, the unit sits within it, keeping cups accessible while leaving the work surface clear. It is constructed from 304 stainless steel, which holds up well to the regular cleaning and hygiene requirements of a commercial beverage station.

In practice, this type of dispenser is well suited to moderate-volume service points — staff canteens, café self-serve stations, water or juice counters, and similar environments where cups need to be within easy reach without cluttering the counter. The adjustable collar accommodates the rim diameter variation that exists across different cup brands, reducing the likelihood of cups dropping through or jamming mid-service. Spring selection allows the unit to be configured appropriately for either paper or polystyrene cups, which behave differently under spring tension and are worth considering when specifying.

  • Adjustable collar reduces jamming and drop-through across different cup brands
  • Spring options allow configuration for paper or polystyrene cup types
  • Stainless steel construction supports daily cleaning and hygiene compliance
  • In-counter position keeps cups accessible without occupying surface space
  • Patented mounting ring locks securely into the counter cut-out

Installation requires a counter cut-out to the correct diameter, which should be confirmed against the dispenser specification before ordering — counters vary in material and thickness and it is worth checking compatibility first. The unit is not suitable for wall or overhead mounting; it is designed specifically for in-counter use. For higher-volume sites or operations dispensing larger cup formats, a higher-capacity model may be a more practical fit.

This dispenser is a practical choice for light to moderate service environments where a tidy, hygienic cup presentation is needed in a compact footprint. If you are unsure whether it suits your counter setup or cup range, we are happy to talk it through.

Frequently asked questions

What volume of service is this dispenser realistically suited to?

The C3200CV is best suited to light to moderate service volumes — think staff canteens, café beverage stations, or self-serve water points where cup throughput is steady rather than intense. For high-volume operations dispensing cups continuously across long service periods, a larger-capacity or tube-style dispenser is likely to be a more practical choice.

What does in-counter installation involve, and are there any compatibility checks I should do first?

The dispenser requires a cut-out to be made in the counter surface at the correct diameter, and the unit is then locked in place using the patented mounting ring. Before ordering, it is worth confirming the counter material and thickness are suitable, as some surfaces — particularly thin or laminated worktops — may not provide sufficient support for a secure fit.

Does the dispenser work with both paper and polystyrene cups?

Yes — the unit can be configured for either cup material by selecting the appropriate spring, since paper and polystyrene cups respond differently under tension. It is worth confirming which cup type you are using before installation so the correct spring is fitted from the outset, particularly if you source cups from more than one supplier.
